Product Passport reader KR530(B) Passport Scanner

Function Introduction

Identify Documents

Supports the reading of more than 80 kinds of documents including domestic and foreign driver's licenses, visas, Mainland travel permits, Hong Kong, Macao and Taiwan identity cards.

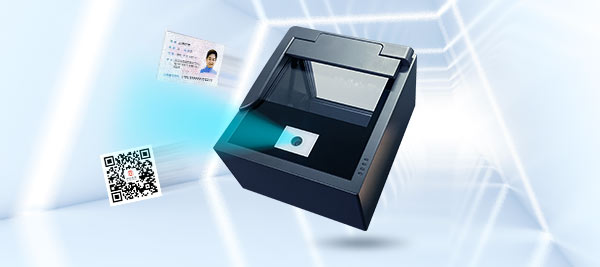

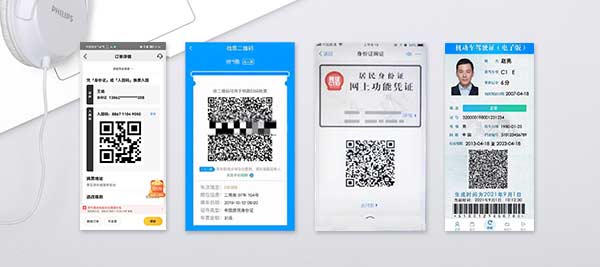

Barcode, QR Code Recognition

Passport reader supports fast identification and analysis of various QR code/barcode information such as electronic driver's license, electronic ID card, boarding pass, train ticket inspection, etc.

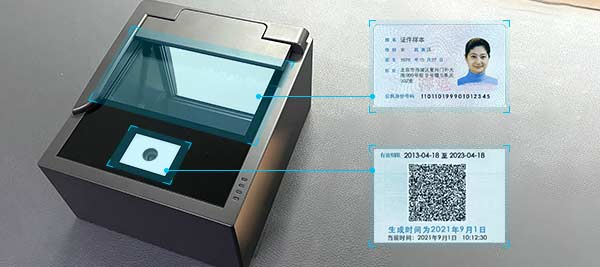

All-In-One Reading Device, Easy To Integrate

The innovative application of the passport reader, which integrates document identification and QR code/barcode identification technology, can identify all types of identity carriers with one device, and the space layout is small and compact, easy to integrate

Authenticity

Supports various authenticity features such as ultraviolet light feature inspection, infrared light feature inspection, chip data inspection, OCR data and electronic chip content cross-validation

Identify Passports

Support reading ICAO doc 9303 standard multi passports, such as e-passports and passports from more than 200 countries

Reading Methods

Support three reading methods: pure photo OCR recognition, pure card reading, photo + card reading

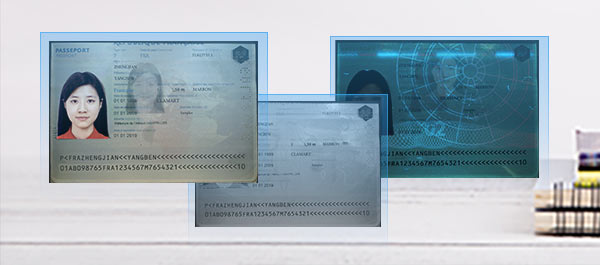

Multispectral Imaging

Passport reader supports output of visible light, infrared light, ultraviolet light image

Automatic Trigger, Automatic Reading and Classification

RFID reading supports automatic identification and classification of multiple certificates, automatic reading of certificate information and entry of certificate information into the system

Second-Level Document Reading with High Accuracy

The electronic passport card reading time is less than 3 seconds, the second-generation card reading and QR code analysis time is less than 1 second, the identification accuracy rate of the document is as high as 99.8%, and the bit error rate is extremely low

Support Secondary Development

Provide software development packages for windows, Linux and Android systems for secondary development; Provide calling routines in VC, VB, c#, Java and other languages

Anti-Glare Interference

Remove the influence of anti-counterfeiting film and reflections to ensure that the color of the document is not distorted

System Compatibility and Strong Applicability

It can be embedded in various self-service devices such as security gates, self-service ticket machines, VTM, digital currency exchange machines, etc., used in hotels, travel agencies, visitor management systems, airports, high-speed rail, customs, inspection and quarantine, diplomacy, public security, exhibitions, etc. Multiple scenarios

Product Superiority

Support Xinchuang PC operating system
The passport reader supports chips such as Feiteng, Loongson, and Megachip, as well as domestic systems such as Kirin System and Unison UOS, and the price is independent and controllable
High-Quality Material Selection and Solid Quality
Silver-gray collocation, delicate and small, solid quality, professional high borosilicate glass, material selection, friction resistance, strong stability
Independent Research and Development, Safe and Reliable
OCR certificate recognition, embedded software development, structural design, RFID card reading and debugging, image forgery detection and other completely independent research and development, safe and reliable
Anti-metal and Signal Interference
Dual antenna design to prevent signal interference, anti-metal interference, can be integrated into various metal equipment
Flexible Reading Mode Configuration
Under different reading modes, the card reading rate, the displayed text information and picture information are different, which are flexibly configured and suitable for different scenarios.
Qualified Enterprise with Strong Strength
Passed various industry certifications such as TravelSky certification, inspection report of the Ministry of Public Security, information security management system certification, and international certifications such as CE and FCC
HD Shooting and Clear Perspective
Passport reader 5 megapixel high-definition imaging, physical resolution of 500dpi, dual light sources to remove the impact of light spots
Various Models
Including embedded KR650(B), KR530(B), KR420(B), KR220(B), KR160(B) various models of passport readers to meet different needs of customer groups

Application Scenarios

  • High Speed Rail Ticket Inspection
  • Airport Check-In
  • Scenic Spot Ticket Inspection
High Speed Rail Ticket Inspection

Integrate the passport reader into the security gate of the high-speed rail station. Passengers can identify the ticket purchase information in seconds by swiping the QR code of the electronic high-speed rail ticket or ID card in the mobile phone, and quickly check the ticket into the station. The two-dimensional code recognition core is integrated to meet the needs of various document collection. The space layout is small and compact, and it is easy to integrate.

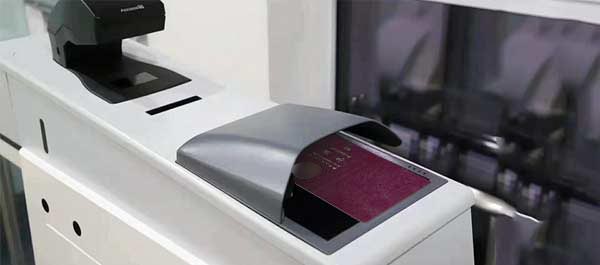

Airport Check-In

Integrate the Sinosecu passport reader into the self-service check-in machine at the civil aviation airport. Passengers present their boarding pass, ID card, passport and other documents when checking in, scan the QR code in the electronic ID card or boarding pass, and use the passport reader It can quickly read documents and QR codes to obtain passenger identity information, greatly reducing registration information and improving traffic efficiency.

Scenic Spot Ticket Inspection

Integrate the passport reader into the ticket inspection channel of the scenic spot, and passengers can recognize the reservation information in seconds by swiping the ticket purchase QR code in the mobile phone, quickly enter the landscape, and improve the tourist experience.

Case

How does Traditional Hotels Transform into Smart Hotels
The Combination and Verification of Person and Document in the Hotel
ID Card Reader Increases Hotel Occupancy

Product parameters

  • KR160 Passport Scanner
    RFID Reading OCR Processing Visible Image IR Image UV Image Auto-Trigger
    - √ √ √ - √
    Detalis
    Illumination sources Visible, IR(850nm)
    Anti-glare Elimination of glare from holographic anti-counterfeiting film and reflection of light
    Image Acquisition Active scan area: 127mm x 88mm
    CMOS, 500 Megapixels (2592*1944)
    Imaging Color Depth: 24 bits/pixels
    Resolution: 500 DPI
    Image Format: JPEG, BMP, PNG
    Crop for Headshot Cropping of a document headshot image from a general image
    OCR Recognition Support extract data and image from ICAO 9303 Standard compliant documents and other Non-ICAO 9303 Standard compliant document, like ID card, Driver's License, Exit-entry Permit to HK/Macau, and etc by OCR
    Barcode:
    1D: Code 128, Code 39, EAN-13, and etc
    2D: PDF417, QR, DataMatrix™, and etc
    Scanning speed less than 1 second
    RFID Read and write contactless ICs according to ISO/IEC 14443-S (Type A/B)
    Support e-passport Basic Access Control(BAC)
    Support active/passive authentication
    Machine Readable Zone ICAO 9303 Standard compliant documents:
    ID-1
    ID-2
    ID-3
    Non-ICAO 9303 Standard compliant documents issued by China
    IP Rating IP50
    Data Communication Compatible USB 2.0, USB 3.0, PC/SC
    Communication Speed Up to 848kbps
    Auto-trigger Automatic detection of a document in a scanning area
    Auto-classification Automatic recognition of a ID document type
    Status Indicators Four status indicator LEDs (for Power, Ready, Error, and Warning)
    Support customize indicators
    Sound Buzzer
    Software Complete OCR SDK including DLLs, OCXs, Websocket, and Demo program
    Programming Language:
    VC, VB, C#, Java, etc. Provide OCR SDK for Linux.
    Power Input AC 100~240V 50~60Hz, 0.8A
    Output: DC 12V, 2A
    Environmental Humidity: 20% to 95% non-condensing
    Temperature:
    Operating: -10ºC to 50ºC
    Storage: -20ºC to 50ºC
    OS compatibility Windows® 2000-SP4  ，Windows® XP  ，Windows® Vista, Windows®7, Windows®8, Windows®10, and Linux®
    Hardware Dimension: 193.2*166*104.3mm
    Net Weight: 1.30Kg  Gross Weight: 2.11Kg
    Warranty 1 year warrany, extensible
  • KR420 Passport Scanner
    RFID Reading OCR Processing Visible Image IR Image UV Image Auto-Trigger
    √ √ √ √ - √
    Detalis
    Illumination sources Visible, IR(850nm)
    Anti-glare Elimination of glare from holographic anti-counterfeiting film and reflection of light
    Image Acquisition Active scan area: 127mm x 88mm
    CMOS, 500 Megapixels (2592*1944)
    Imaging Color Depth: 24 bits/pixels
    Resolution: 500 DPI
    Image Format: JPEG, BMP, PNG
    Get the headshot from the chip
    Crop for Headshot Cropping of a document headshot image from a general image
    OCR Recognition Support extract data and image from ICAO 9303 Standard compliant documents and other Non-ICAO 9303 Standard compliant document, like ID card, Driver's License, Exit-entry Permit to HK/Macau, and etc by OCR
    Barcode:
    1D: Code 128, Code 39, EAN-13, and etc
    2D: PDF417, QR, DataMatrix™, and etc
    Scanning speed less than 1 second
    RFID Read and write contactless ICs according to ISO/IEC 14443-S (Type A/B)
    Support e-passport Basic Access Control(BAC)
    Support active/passive authentication
    Machine Readable Zone ICAO 9303 Standard compliant documents:
    ID-1
    ID-2
    ID-3
    Non-ICAO 9303 Standard compliant documents issued by China
    IP Rating IP50
    Data Communication Compatible USB 2.0, USB 3.0, PC/SC
    Communication Speed Up to 848kbps
    Auto-trigger Automatic detection of a document in a scanning area
    Auto-classification Automatic recognition of a ID document type
    Status Indicators Four status indicator LEDs (for Power, Ready, Error, and Warning)
    Support customize indicators
    Sound Buzzer
    Software Complete OCR SDK including DLLs, OCXs, Websocket, and Demo program
    Programming Language:
    VC, VB, C#, Java, etc. Provide OCR SDK for Linux.
    Power Input AC 100~240V 50~60Hz, 0.8A
    Output: DC 12V, 2A
    Environmental Humidity: 20% to 95% non-condensing
    Temperature:
    Operating: -10ºC to 50ºC
    Storage: -20ºC to 50ºC
    OS compatibility Windows® 2000-SP4  ，Windows® XP  ，Windows® Vista, Windows®7, Windows®8, Windows®10, and Linux®
    Hardware Dimension: 193.2*166*104.3mm
    Net Weight: 1.30Kg  Gross Weight: 2.11Kg
    Warranty 1 year warrany, extensible
  • KR530 Passport Scanner
    RFID Reading OCR Processing Visible Image IR Image UV Image Auto-Trigger
    √ √ √ √ √ √
    Detalis
    Illumination sources Visible, IR(850nm), UV(365nm)
    Anti-glare Elimination of glare from holographic anti-counterfeiting film and reflection of light
    Image Acquisition Active scan area: 127mm x 88mm
    CMOS, 500 Megapixels (2592*1944)
    Imaging Color Depth: 24 bits/pixels
    Resolution: 500 DPI
    Image Format: JPEG, BMP, PNG
    Get the headshot from the chip
    Crop for Headshot Cropping of a document headshot image from a general image
    OCR Recognition Support extract data and image from ICAO 9303 Standard compliant documents and other Non-ICAO 9303 Standard compliant document, like ID card, Driver's License, Exit-entry Permit to HK/Macau, and etc by OCR
    Barcode:
    1D: Code 128, Code 39, EAN-13, and etc
    2D: PDF417, QR, DataMatrix™, and etc
    Scanning speed less than 1 second
    RFID Read and write contactless ICs according to ISO/IEC 14443-S (Type A/B)
    Support e-passport Basic Access Control(BAC)
    Support active/passive authentication
    Machine Readable Zone ICAO 9303 Standard compliant documents:
    ID-1
    ID-2
    ID-3
    Non-ICAO 9303 Standard compliant documents issued by China
    IP Rating IP50
    Data Communication Compatible USB 2.0, USB 3.0, PC/SC
    Communication Speed Up to 848kbps
    Auto-trigger Automatic detection of a document in a scanning area
    Auto-classification Automatic recognition of a ID document type
    Status Indicators Four status indicator LEDs (for Power, Ready, Error, and Warning)
    Support customize indicators
    Sound Buzzer
    Software Complete OCR SDK including DLLs, OCXs, Websocket, and Demo program
    Programming Language:
    VC, VB, C#, Java, etc. Provide OCR SDK for Linux.
    Power Input AC 100~240V 50~60Hz, 0.8A
    Output: DC 12V, 2A
    Environmental Humidity: 20% to 95% non-condensing
    Temperature:
    Operating: -10ºC to 50ºC
    Storage: -20ºC to 50ºC
    OS compatibility Windows® 2000-SP4  ，Windows® XP  ，Windows® Vista, Windows®7, Windows®8, Windows®10, and Linux®
    Hardware Dimension: 193.2*166*104.3mm
    Net Weight: 1.30Kg  Gross Weight: 2.11Kg
    Warranty 1 year warrany, extensible
  • KR530(B) Passport Scanner
    RFID Reading OCR Processing Visible Image IR Image UV Image Auto-Trigger
    — √ √ √ √ √
    Detalis
    Illumination sources Visible, IR(850nm), UV(365nm)
    Anti-glare Elimination of glare from holographic anti-counterfeiting film and reflection of light
    Image Acquisition Active scan area: 127mm x 88mm
    CMOS, 500 Megapixels (2592*1944)
    Imaging Color Depth: 24 bits/pixels
    Resolution: 500 DPI
    Image Format: JPEG, BMP, PNG
    Get the headshot from the chip
    Crop for Headshot Cropping of a document headshot image from a general image
    OCR Recognition Support extract data and image from ICAO 9303 Standard compliant documents and other Non-ICAO 9303 Standard compliant document, like ID card, Driver's License, Exit-entry Permit to HK/Macau, and etc by OCR
    Barcode:
    1D: Code 128, Code 39, EAN-13, and etc
    2D: PDF417, QR, DataMatrix™, and etc
    Scanning speed less than 1 second
    RFID

    Read Smart Card complied with ISO/IEC 7816
    Read and write contactless ICs according to ISO/IEC 14443-S (Type A/B)
    Support e-passport Basic Access Control(BAC)
    Support active/passive authentication
    QR Code Recognition and

    Decoding

    Read barcodes on printed paper tickets and electronic tickets
    Machine Readable Zone ICAO 9303 Standard compliant documents:
    ID-1
    ID-2
    ID-3
    Non-ICAO 9303 Standard compliant documents issued by China
    IP Rating IP50
    Data Communication Compatible USB 2.0, USB 3.0, PC/SC
    Communication Speed Up to 848kbps
    Auto-trigger Automatic detection of a document in a scanning area
    Auto-classification Automatic recognition of a ID document type
    Status Indicators Four status indicator LEDs (for Power, Ready, Error, and Warning)
    Support customize indicators
    Sound Buzzer
    Software Complete OCR SDK including DLLs, OCXs, Websocket, and Demo program
    Programming Language:
    VC, VB, C#, Java, etc. Provide OCR SDK for Linux.
    Power Input AC 100~240V 50~60Hz, 0.8A
    Output: DC 12V, 2A
    Environmental Humidity: 20% to 95% non-condensing
    Temperature:
    Operating: -10ºC to 50ºC
    Storage: -20ºC to 50ºC
    OS compatibility Windows® 2000-SP4  ，Windows® XP  ，Windows® Vista, Windows®7, Windows®8, Windows®10, and Linux®
    Hardware Dimension: 169*193*104.3mm
    Net Weight: 1.30Kg  Gross Weight: 2.11Kg
    Warranty 1 year warrany, extensible
  • KR500(C) ID Card Scanner
    RFID Reading OCR Processing Visible Image IR Image UV Image Auto-Trigger
    √ √ √ √ √ √
    Detalis
    Illumination sources Visible, IR(850nm), UV(365nm)
    Anti-glare Elimination of glare from holographic anti-counterfeiting film and reflection of light
    Image Acquisition Active scan area: 127mm x 88mm
    CMOS, 500 Megapixels (2592*1944)
    Imaging Color Depth: 24 bits/pixels
    Resolution: 500 DPI
    Image Format: JPEG, BMP, PNG
    Get the headshot from the chip
    Crop for Headshot Cropping of a document headshot image from a general image
    OCR Recognition Support extract data and image from ICAO 9303 Standard compliant documents and other Non-ICAO 9303 Standard compliant document, like ID card, Driver's License, Exit-entry Permit to HK/Macau, and etc by OCR
    Barcode:
    1D: Code 128, Code 39, EAN-13, and etc
    2D: PDF417, QR, DataMatrix™, and etc
    Scanning speed less than 1 second
    RFID

    Read Smart Card complied with ISO/IEC 7816
    Read and write contactless ICs according to ISO/IEC 14443-S (Type A/B)
    Support e-passport Basic Access Control(BAC)
    Support active/passive authentication
    Machine Readable Zone ICAO 9303 Standard compliant documents:
    ID-1
    ID-2
    ID-3
    Non-ICAO 9303 Standard compliant documents issued by China
    IP Rating IP50
    Data Communication Compatible USB 2.0, USB 3.0, PC/SC
    Communication Speed Up to 848kbps
    Auto-trigger Automatic detection of a document in a scanning area
    Auto-classification Automatic recognition of a ID document type
    Status Indicators Four status indicator LEDs (for Power, Ready, Error, and Warning)
    Support customize indicators
    Sound Buzzer
    Software Complete OCR SDK including DLLs, OCXs, Websocket, and Demo program
    Programming Language:
    VC, VB, C#, Java, etc. Provide OCR SDK for Linux.
    Power Input AC 100~240V 50~60Hz, 0.8A
    Output: DC 12V, 2A
    Environmental Humidity: 20% to 95% non-condensing
    Temperature:
    Operating: -10ºC to 50ºC
    Storage: -20ºC to 50ºC
    OS compatibility Windows® 2000-SP4  ，Windows® XP  ，Windows® Vista, Windows®7, Windows®8, Windows®10, and Linux®
    Hardware Dimension: 169*193*104.3mm
    Net Weight: 1.30Kg  Gross Weight: 2.11Kg
    Warranty 1 year warrany, extensible



  • Ultra-Thin Embedded Passport Reader
    RFID Reading OCR Processing Auto-Trigger Barcode Recognition Light type Supported Resolutions
    √ √ √ √ Visible light, infrared light, ultraviolet light 2048×1536、2592×1944
    Detalis
    Parameter Name Detailed Description
    Light Source Multi-band light source: includes visible light, infrared 850nm, UV 365nm; UV exposure intensity can be adjusted
    Anti-glare Function Ensures accurate document color without distortion, and removes the influence of anti-counterfeiting film and glare
    Image Capture Capture area 127*88 mm, sensor CMOS 5MP（2592* 1944） resolution 500 DPI, 24-bit clear color photos of the full page of passport documents
    Image Saving Images captured under visible (white), infrared, and ultraviolet light can be saved in BMP, PNG, or JPEG formats without reflective light spots; electronic headshots can also be saved from chip-enabled IDs.
    Document Image Rotation Supports automatic document rotation function;
    Can make any direction into the documents, image acquisition after the rotation of the corrected are the positive direction of the display
    Human Face Detection Cropped image with face and head areas intact, non-photographic areas are small in the image, and the photo is free of photographic occlusion
    Multi-band Image Recognition Support ICAO9303 standard passport, visa and other travel documents image capture and information recognition;
    Support ICAO9303 standard e-passport card reading;
    Support ISO 14443 Type A/B type card reading.
    E-passport Chip Reading Support basic access control (BAC, PACE) for e-passport
    Support passive authentication (PA) of e-passport to verify the authenticity of document information.
    Support e-Passport Active Authentication (AA) to verify the authenticity of document chips.
    Second Generation ID Chip Reading Supports the reading and authentication of second-generation ID cards with BAC authentication
    Machine-Readable Zone (MRZ) Reads all ICAO-compliant machine-readable travel documents, as well as non-ICAO-compliant documents issued in China.And parses machine readable code (MRZ) information.
    Barcode Recognition Supports recognition of 1D barcodes such as Code 128, Code 39, EAN-13; supports 2D barcodes such as PDF417, QR, DataMatrix
    Camera Support recognition of paper boarding passes, electronic boarding passes, electronic ID card recognition, electronic driver's license recognition, scenic area electronic tickets and other electronic QR codes on various cell phones; photo recognition speed of less than 1 second; support for ultraviolet light brightness adjustment
    Expansion Features Support to enable the document to take out, callback mode, refused to recognize the function;
    Support to enable security feature detection, RFID card reading settings and other expanded settings;
    Supports the removal of complex background settings, resolution settings, enable barcode recognition.
    Operation Mode Card documents can be read at any position in the reading window triggered reading; machine readable code page skewed or upside down does not affect the reading results
    Protection Level IP50
    Data Communication Supports PC/SC protocol (including driverless mode), provides USB2.0 and USB3.0 ports; supports USB extension development and can be connected to handheld devices.
    Communication Rate Maximum rate of 848 Kbps
    Automatic triggering Support for automatic triggering of ID card reading by sensing the ID card
    Automatic classification The system automatically categorizes documents.
    Indicator Lights Includes power indicator, ready indicator, error indicator and warning indicator; support indicator working state customization
    Buzzer Built-in Buzzer
    Software Development Provide windows system software development kit for secondary development call;
     Provide in the form of Dll, OCX, WebSocket, and call routines in VC, VB, C#, Java and other languages;
    Provide 32-bit and 64-bit SDK development packages for Linux and Android.
    Power Supply Use external standard power adapter, Power adapter specification;
    Input AC 100~240V 50-60Hz 0.8A; Output DC 12V 2A
    Operating Environment Humidity: 20% to 95% (non-condensing); temperature: -10°C to 50°C (operation); -20°C to 50°C (storage)
    Operating System Compatible with Windows® 2000-SP4, Windows® XP, Windows® Vista, Windows® 7, Windows® 8, Windows® 10, and Linux systems; Support domestic operating system: Kirin, Unicom.
    Supported Domestic CPU Supports CPUs such as Longxin,Zhaoxin, Fetion, etc.
    Physical Dimensions Outer dimensions: 190.08* 143* 68.25mm (lengthwidthheight)
    Service and Warranty Provides 365-day/24-hour phone, email, and online technical support; one-year hardware warranty, lifetime maintenance
