Product Passport reader Ultra-Thin Embedded Passport Reader

Function Introduction

Supports for reading e-passports of more than 200 countries in line with the global ICAO DOC 9303 standard, paper passports and more than 80 kinds of documents including domestic and foreign driver's licenses, visas, Hong Kong and Macao identity cards, home visit permits, Taiwan compatriot certificates, and so on
Multiple document recognition

Supports for reading e-passports of more than 200 countries in line with the global ICAO DOC 9303 standard, paper passports and more than 80 kinds of documents including domestic and foreign driver's licenses, visas, Hong Kong and Macao identity cards, home visit permits, Taiwan compatriot certificates, and so on

Supports image data checking, OCR data checking, chip data checking and cross-checking.
Support document authenticity checking

Supports image data checking, OCR data checking, chip data checking and cross-checking.

Offers three reading modes: OCR recognition via photo, card reading only, and a combination of photo and card reading.
Multiple Reading Modes

Offers three reading modes: OCR recognition via photo, card reading only, and a combination of photo and card reading.

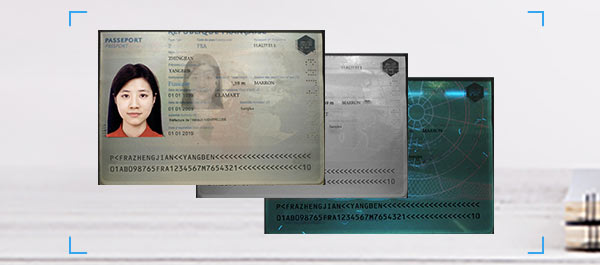

Supports the output of visible light, infrared, and ultraviolet images.
Multi-Spectral Imaging

Supports the output of visible light, infrared, and ultraviolet images.

Capable of extracting personal photos from both the document surface and embedded chips.
Extract Personal Photos

Capable of extracting personal photos from both the document surface and embedded chips.

Automatically identifies and categorizes multiple document types, reading and uploading document information into the system.
Automatic Triggering and Categorization

Automatically identifies and categorizes multiple document types, reading and uploading document information into the system.

Support for recognition of barcodes and QR codes (including cell phone QR code), through the light-sensitive sensor technology, to effectively avoid cell phone NFC mistakenly triggered by other apps to affect the barcode reading
Barcode/QR Code Recognition

Support for recognition of barcodes and QR codes (including cell phone QR code), through the light-sensitive sensor technology, to effectively avoid cell phone NFC mistakenly triggered by other apps to affect the barcode reading

Achieves a recognition accuracy rate of 99.8% with a communication rate of up to 848 Kbps.
Fast and Accurate Document Reading

Achieves a recognition accuracy rate of 99.8% with a communication rate of up to 848 Kbps.

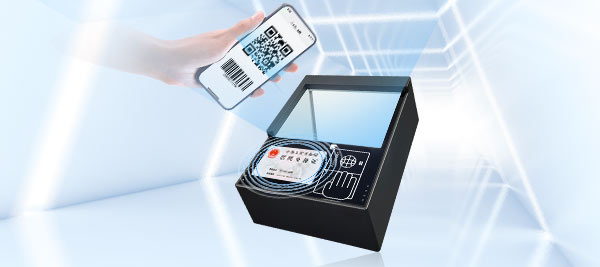

The innovative application of the passport reader integrates document recognition and QR code/barcode recognition technology. One device can identify all types of identity carriers. The space layout is small and compact, and it is easy to integrate.
Integrated reading equipment

The innovative application of the passport reader integrates document recognition and QR code/barcode recognition technology. One device can identify all types of identity carriers. The space layout is small and compact, and it is easy to integrate.

Offers SDKs for Windows, Linux, and Android for secondary development, along with examples in languages such as VC, VB, C#, and Java.
Support Secondary Development

Offers SDKs for Windows, Linux, and Android for secondary development, along with examples in languages such as VC, VB, C#, and Java.

Removes anti-counterfeiting film and reflective interference, ensuring accurate document color reproduction.
Anti-Glare Interference

Removes anti-counterfeiting film and reflective interference, ensuring accurate document color reproduction.

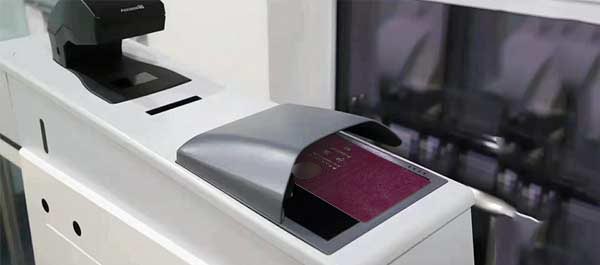

Can be embedded into various self-service devices such as security gates, ticketing machines, and VTMs. It is widely used in hotels, travel agencies, visitor management, airports, high-speed rail stations, customs, diplomacy, public security, and exhibitions.
System Compatibility and Versatility

Can be embedded into various self-service devices such as security gates, ticketing machines, and VTMs. It is widely used in hotels, travel agencies, visitor management, airports, high-speed rail stations, customs, diplomacy, public security, and exhibitions.

Product Superiority

Compact and thin, thickness is only 6.8cm, professional high borosilicate glass, friction resistance, strong stability, equipped with two kinds of accessories, the bar and adjustable or removable damping shade, to adapt to different lighting conditions.
Fine design, more compact appearance
Compact and thin, thickness is only 6.8cm, professional high borosilicate glass, friction resistance, strong stability, equipped with two kinds of accessories, the bar and adjustable or removable damping shade, to adapt to different lighting conditions.
The passport reader supports chips such as Feiteng, Longxin and Zhaoxin, as well as domestic systems such as Kirin system and Tongxin UOS. The price is independent and controllable
Support Xinchuang PC Operating System
The passport reader supports chips such as Feiteng, Longxin and Zhaoxin, as well as domestic systems such as Kirin system and Tongxin UOS. The price is independent and controllable
OCR document recognition, embedded software development, structural design, and RFID card reading adjustment are all independently developed, ensuring security and reliability.
Independently Developed and Secure
OCR document recognition, embedded software development, structural design, and RFID card reading adjustment are all independently developed, ensuring security and reliability.
Dual antenna design prevents signal and metal interference, making it suitable for integration into various metal devices
Anti-Metal and Signal Interference
Dual antenna design prevents signal and metal interference, making it suitable for integration into various metal devices
Different reading modes allow for adjustable card reading speeds, text display, and image information, making it adaptable to various scenarios.
Flexible Reading Mode Configuration
Different reading modes allow for adjustable card reading speeds, text display, and image information, making it adaptable to various scenarios.
The SR Passport Reader is an innovative application that combines document recognition and QR code/barcode recognition technology to recognize all types of identity carriers in a single device with a compact and easy-to-integrate layout.
All-in-one device for easy integration
The SR Passport Reader is an innovative application that combines document recognition and QR code/barcode recognition technology to recognize all types of identity carriers in a single device with a compact and easy-to-integrate layout.
The passport reader features 5 million pixels and achieves a physical resolution of 500 DPI, eliminating the effects of light spots with dual light sources.
High-Definition Imaging
The passport reader features 5 million pixels and achieves a physical resolution of 500 DPI, eliminating the effects of light spots with dual light sources.
Includes several models, such as SR690, SR580, SR460, SR240, and SR190, catering to the needs of different customer groups.
Multiple Models
Includes several models, such as SR690, SR580, SR460, SR240, and SR190, catering to the needs of different customer groups.
Equipped with USB and Type-C interfaces, offering high-speed data transfer capabilities. The compact Type-C interface is highly protective, saving device space and ensuring stability and durability during use.
High-speed transmission, rich interface
Equipped with USB and Type-C interfaces, offering high-speed data transfer capabilities. The compact Type-C interface is highly protective, saving device space and ensuring stability and durability during use.

Application Scenarios

  • Digital Currency
  • Customs
  • Immigration Control
  • Banking
  • Airports
  • High-Speed Rail
Digital Currency

Integrated into digital currency exchange machines, enabling domestic and international users to use second-generation IDs, passports, and other identification documents for real-name authentication. This supports currency exchange options, including foreign bank cards to RMB or NFC cards, and digital currency accounts, facilitating easier use for foreign guests while preventing counterfeit document exchanges.

Customs

Helps customs officers verify passport information quickly and accurately during luggage inspections, speeding up the process and reducing manual labor.

Immigration Control

The device can automatically recognize and classify various documents, improving the efficiency and user experience during immigration processing.

Banking

Integrates into banking self-service terminals, enhancing customer identity verification and simplifying processes such as account opening and transactions.

Airports

Utilized in self-service check-in counters, this device speeds up passenger processing by quickly recognizing boarding passes and identity documents.

High-Speed Rail

Installed in self-service ticketing machines at high-speed rail stations, it enables domestic and international passengers to efficiently purchase or collect tickets using various documents, including ID cards, passports, and military certificates.

Case

How does Traditional Hotels Transform into Smart Hotels
The Combination and Verification of Person and Document in the Hotel
ID Card Reader Increases Hotel Occupancy

Product parameters

  • KR160 Passport Scanner
    RFID Reading OCR Processing Visible Image IR Image UV Image Auto-Trigger
    - √ √ √ - √
    Detalis
    Illumination sources Visible, IR(850nm)
    Anti-glare Elimination of glare from holographic anti-counterfeiting film and reflection of light
    Image Acquisition Active scan area: 127mm x 88mm
    CMOS, 500 Megapixels (2592*1944)
    Imaging Color Depth: 24 bits/pixels
    Resolution: 500 DPI
    Image Format: JPEG, BMP, PNG
    Crop for Headshot Cropping of a document headshot image from a general image
    OCR Recognition Support extract data and image from ICAO 9303 Standard compliant documents and other Non-ICAO 9303 Standard compliant document, like ID card, Driver's License, Exit-entry Permit to HK/Macau, and etc by OCR
    Barcode:
    1D: Code 128, Code 39, EAN-13, and etc
    2D: PDF417, QR, DataMatrix™, and etc
    Scanning speed less than 1 second
    RFID Read and write contactless ICs according to ISO/IEC 14443-S (Type A/B)
    Support e-passport Basic Access Control(BAC)
    Support active/passive authentication
    Machine Readable Zone ICAO 9303 Standard compliant documents:
    ID-1
    ID-2
    ID-3
    Non-ICAO 9303 Standard compliant documents issued by China
    IP Rating IP50
    Data Communication Compatible USB 2.0, USB 3.0, PC/SC
    Communication Speed Up to 848kbps
    Auto-trigger Automatic detection of a document in a scanning area
    Auto-classification Automatic recognition of a ID document type
    Status Indicators Four status indicator LEDs (for Power, Ready, Error, and Warning)
    Support customize indicators
    Sound Buzzer
    Software Complete OCR SDK including DLLs, OCXs, Websocket, and Demo program
    Programming Language:
    VC, VB, C#, Java, etc. Provide OCR SDK for Linux.
    Power Input AC 100~240V 50~60Hz, 0.8A
    Output: DC 12V, 2A
    Environmental Humidity: 20% to 95% non-condensing
    Temperature:
    Operating: -10ºC to 50ºC
    Storage: -20ºC to 50ºC
    OS compatibility Windows® 2000-SP4  ，Windows® XP  ，Windows® Vista, Windows®7, Windows®8, Windows®10, and Linux®
    Hardware Dimension: 193.2*166*104.3mm
    Net Weight: 1.30Kg  Gross Weight: 2.11Kg
    Warranty 1 year warrany, extensible
  • KR420 Passport Scanner
    RFID Reading OCR Processing Visible Image IR Image UV Image Auto-Trigger
    √ √ √ √ - √
    Detalis
    Illumination sources Visible, IR(850nm)
    Anti-glare Elimination of glare from holographic anti-counterfeiting film and reflection of light
    Image Acquisition Active scan area: 127mm x 88mm
    CMOS, 500 Megapixels (2592*1944)
    Imaging Color Depth: 24 bits/pixels
    Resolution: 500 DPI
    Image Format: JPEG, BMP, PNG
    Get the headshot from the chip
    Crop for Headshot Cropping of a document headshot image from a general image
    OCR Recognition Support extract data and image from ICAO 9303 Standard compliant documents and other Non-ICAO 9303 Standard compliant document, like ID card, Driver's License, Exit-entry Permit to HK/Macau, and etc by OCR
    Barcode:
    1D: Code 128, Code 39, EAN-13, and etc
    2D: PDF417, QR, DataMatrix™, and etc
    Scanning speed less than 1 second
    RFID Read and write contactless ICs according to ISO/IEC 14443-S (Type A/B)
    Support e-passport Basic Access Control(BAC)
    Support active/passive authentication
    Machine Readable Zone ICAO 9303 Standard compliant documents:
    ID-1
    ID-2
    ID-3
    Non-ICAO 9303 Standard compliant documents issued by China
    IP Rating IP50
    Data Communication Compatible USB 2.0, USB 3.0, PC/SC
    Communication Speed Up to 848kbps
    Auto-trigger Automatic detection of a document in a scanning area
    Auto-classification Automatic recognition of a ID document type
    Status Indicators Four status indicator LEDs (for Power, Ready, Error, and Warning)
    Support customize indicators
    Sound Buzzer
    Software Complete OCR SDK including DLLs, OCXs, Websocket, and Demo program
    Programming Language:
    VC, VB, C#, Java, etc. Provide OCR SDK for Linux.
    Power Input AC 100~240V 50~60Hz, 0.8A
    Output: DC 12V, 2A
    Environmental Humidity: 20% to 95% non-condensing
    Temperature:
    Operating: -10ºC to 50ºC
    Storage: -20ºC to 50ºC
    OS compatibility Windows® 2000-SP4  ，Windows® XP  ，Windows® Vista, Windows®7, Windows®8, Windows®10, and Linux®
    Hardware Dimension: 193.2*166*104.3mm
    Net Weight: 1.30Kg  Gross Weight: 2.11Kg
    Warranty 1 year warrany, extensible
  • KR530 Passport Scanner
    RFID Reading OCR Processing Visible Image IR Image UV Image Auto-Trigger
    √ √ √ √ √ √
    Detalis
    Illumination sources Visible, IR(850nm), UV(365nm)
    Anti-glare Elimination of glare from holographic anti-counterfeiting film and reflection of light
    Image Acquisition Active scan area: 127mm x 88mm
    CMOS, 500 Megapixels (2592*1944)
    Imaging Color Depth: 24 bits/pixels
    Resolution: 500 DPI
    Image Format: JPEG, BMP, PNG
    Get the headshot from the chip
    Crop for Headshot Cropping of a document headshot image from a general image
    OCR Recognition Support extract data and image from ICAO 9303 Standard compliant documents and other Non-ICAO 9303 Standard compliant document, like ID card, Driver's License, Exit-entry Permit to HK/Macau, and etc by OCR
    Barcode:
    1D: Code 128, Code 39, EAN-13, and etc
    2D: PDF417, QR, DataMatrix™, and etc
    Scanning speed less than 1 second
    RFID Read and write contactless ICs according to ISO/IEC 14443-S (Type A/B)
    Support e-passport Basic Access Control(BAC)
    Support active/passive authentication
    Machine Readable Zone ICAO 9303 Standard compliant documents:
    ID-1
    ID-2
    ID-3
    Non-ICAO 9303 Standard compliant documents issued by China
    IP Rating IP50
    Data Communication Compatible USB 2.0, USB 3.0, PC/SC
    Communication Speed Up to 848kbps
    Auto-trigger Automatic detection of a document in a scanning area
    Auto-classification Automatic recognition of a ID document type
    Status Indicators Four status indicator LEDs (for Power, Ready, Error, and Warning)
    Support customize indicators
    Sound Buzzer
    Software Complete OCR SDK including DLLs, OCXs, Websocket, and Demo program
    Programming Language:
    VC, VB, C#, Java, etc. Provide OCR SDK for Linux.
    Power Input AC 100~240V 50~60Hz, 0.8A
    Output: DC 12V, 2A
    Environmental Humidity: 20% to 95% non-condensing
    Temperature:
    Operating: -10ºC to 50ºC
    Storage: -20ºC to 50ºC
    OS compatibility Windows® 2000-SP4  ，Windows® XP  ，Windows® Vista, Windows®7, Windows®8, Windows®10, and Linux®
    Hardware Dimension: 193.2*166*104.3mm
    Net Weight: 1.30Kg  Gross Weight: 2.11Kg
    Warranty 1 year warrany, extensible
  • KR530(B) Passport Scanner
    RFID Reading OCR Processing Visible Image IR Image UV Image Auto-Trigger
    — √ √ √ √ √
    Detalis
    Illumination sources Visible, IR(850nm), UV(365nm)
    Anti-glare Elimination of glare from holographic anti-counterfeiting film and reflection of light
    Image Acquisition Active scan area: 127mm x 88mm
    CMOS, 500 Megapixels (2592*1944)
    Imaging Color Depth: 24 bits/pixels
    Resolution: 500 DPI
    Image Format: JPEG, BMP, PNG
    Get the headshot from the chip
    Crop for Headshot Cropping of a document headshot image from a general image
    OCR Recognition Support extract data and image from ICAO 9303 Standard compliant documents and other Non-ICAO 9303 Standard compliant document, like ID card, Driver's License, Exit-entry Permit to HK/Macau, and etc by OCR
    Barcode:
    1D: Code 128, Code 39, EAN-13, and etc
    2D: PDF417, QR, DataMatrix™, and etc
    Scanning speed less than 1 second
    RFID

    Read Smart Card complied with ISO/IEC 7816
    Read and write contactless ICs according to ISO/IEC 14443-S (Type A/B)
    Support e-passport Basic Access Control(BAC)
    Support active/passive authentication
    QR Code Recognition and

    Decoding

    Read barcodes on printed paper tickets and electronic tickets
    Machine Readable Zone ICAO 9303 Standard compliant documents:
    ID-1
    ID-2
    ID-3
    Non-ICAO 9303 Standard compliant documents issued by China
    IP Rating IP50
    Data Communication Compatible USB 2.0, USB 3.0, PC/SC
    Communication Speed Up to 848kbps
    Auto-trigger Automatic detection of a document in a scanning area
    Auto-classification Automatic recognition of a ID document type
    Status Indicators Four status indicator LEDs (for Power, Ready, Error, and Warning)
    Support customize indicators
    Sound Buzzer
    Software Complete OCR SDK including DLLs, OCXs, Websocket, and Demo program
    Programming Language:
    VC, VB, C#, Java, etc. Provide OCR SDK for Linux.
    Power Input AC 100~240V 50~60Hz, 0.8A
    Output: DC 12V, 2A
    Environmental Humidity: 20% to 95% non-condensing
    Temperature:
    Operating: -10ºC to 50ºC
    Storage: -20ºC to 50ºC
    OS compatibility Windows® 2000-SP4  ，Windows® XP  ，Windows® Vista, Windows®7, Windows®8, Windows®10, and Linux®
    Hardware Dimension: 169*193*104.3mm
    Net Weight: 1.30Kg  Gross Weight: 2.11Kg
    Warranty 1 year warrany, extensible
  • KR500(C) ID Card Scanner
    RFID Reading OCR Processing Visible Image IR Image UV Image Auto-Trigger
    √ √ √ √ √ √
    Detalis
    Illumination sources Visible, IR(850nm), UV(365nm)
    Anti-glare Elimination of glare from holographic anti-counterfeiting film and reflection of light
    Image Acquisition Active scan area: 127mm x 88mm
    CMOS, 500 Megapixels (2592*1944)
    Imaging Color Depth: 24 bits/pixels
    Resolution: 500 DPI
    Image Format: JPEG, BMP, PNG
    Get the headshot from the chip
    Crop for Headshot Cropping of a document headshot image from a general image
    OCR Recognition Support extract data and image from ICAO 9303 Standard compliant documents and other Non-ICAO 9303 Standard compliant document, like ID card, Driver's License, Exit-entry Permit to HK/Macau, and etc by OCR
    Barcode:
    1D: Code 128, Code 39, EAN-13, and etc
    2D: PDF417, QR, DataMatrix™, and etc
    Scanning speed less than 1 second
    RFID

    Read Smart Card complied with ISO/IEC 7816
    Read and write contactless ICs according to ISO/IEC 14443-S (Type A/B)
    Support e-passport Basic Access Control(BAC)
    Support active/passive authentication
    Machine Readable Zone ICAO 9303 Standard compliant documents:
    ID-1
    ID-2
    ID-3
    Non-ICAO 9303 Standard compliant documents issued by China
    IP Rating IP50
    Data Communication Compatible USB 2.0, USB 3.0, PC/SC
    Communication Speed Up to 848kbps
    Auto-trigger Automatic detection of a document in a scanning area
    Auto-classification Automatic recognition of a ID document type
    Status Indicators Four status indicator LEDs (for Power, Ready, Error, and Warning)
    Support customize indicators
    Sound Buzzer
    Software Complete OCR SDK including DLLs, OCXs, Websocket, and Demo program
    Programming Language:
    VC, VB, C#, Java, etc. Provide OCR SDK for Linux.
    Power Input AC 100~240V 50~60Hz, 0.8A
    Output: DC 12V, 2A
    Environmental Humidity: 20% to 95% non-condensing
    Temperature:
    Operating: -10ºC to 50ºC
    Storage: -20ºC to 50ºC
    OS compatibility Windows® 2000-SP4  ，Windows® XP  ，Windows® Vista, Windows®7, Windows®8, Windows®10, and Linux®
    Hardware Dimension: 169*193*104.3mm
    Net Weight: 1.30Kg  Gross Weight: 2.11Kg
    Warranty 1 year warrany, extensible



  • Ultra-Thin Embedded Passport Reader
    RFID Reading OCR Processing Auto-Trigger Barcode Recognition Light type Supported Resolutions
    √ √ √ √ Visible light, infrared light, ultraviolet light 2048×1536、2592×1944
    Detalis
    Parameter Name Detailed Description
    Light Source Multi-band light source: includes visible light, infrared 850nm, UV 365nm; UV exposure intensity can be adjusted
    Anti-glare Function Ensures accurate document color without distortion, and removes the influence of anti-counterfeiting film and glare
    Image Capture Capture area 127*88 mm mm, sensor CMOS 5MP (（2592* 1944） resolution 500 DPI, supports real-time continuous acquisition
    Image Saving Images captured under visible light (white light), infrared light, and UV light can be saved in BMP, PNG, and JPEG formats
    Document Image Rotation Supports automatic document rotation function; documents can be placed in any direction and displayed correctly after capture
    Human Face Detection Can detect human faces, automatically extracting face images from the document
    Multi-band Image Recognition Supports ICAO9303 multi-band image collection (Visible/Infrared/Ultraviolet); fully meets ICAO standard documents
    E-passport Chip Reading Supports ISO 14443 Type A/B contactless smart cards and BAC, PACE authentication
    Second Generation ID Chip Reading Supports the reading and authentication of second-generation ID cards with BAC authentication
    Machine-Readable Zone (MRZ) Can automatically recognize the MRZ of passports that comply with the ICAO standard
    Barcode Recognition Supports recognition of 1D barcodes such as Code 128, Code 39, EAN-13; supports 2D barcodes such as PDF417, QR, DataMatrix
    Camera Supports the identification of eID cards, e-passport chips, electronic ID cards, and e-driver's licenses; capable of mobile phone chip reading. Supports auto-capture (response time less than 1 second), high-speed, and full-focus capture. Supports barcode recognition.
    Expansion Features Supports third-party API integration. RFID reads social security cards, resident cards, ID cards, e-tags, and supports library book recognition.
    Operation Mode Supports button mode and card-insert mode for automatic triggering. Reads black/white or colored images, supporting photo-based auto-trigger.
    Protection Level IP50
    Data Communication Supports PC/SC protocol (including driverless mode), provides USB2.0 and USB3.0 ports; supports USB extension development and can be connected to handheld devices.
    Communication Rate Maximum rate of 848 Kbps
    Communication Distance Maximum distance of 3cm
    Auto Calibration Supports automatic calibration
    Indicator Light Includes a power indicator, error indicator, and working status indicator. Supports defining indicator lights based on the status of the device.
    Software Development Supports Windows system development and provides API support in Dll, OCX, WebSocket, supporting VC, VB, C#, Java; also supports cross-platform development, providing SDKs for Linux and Android (32/64-bit).
    Power Supply Input AC 100240V 5060Hz 0.8A; output DC 12V 2A
    Operating Environment Humidity: 20% to 95% (non-condensing); temperature: -10°C to 50°C (operation); -20°C to 50°C (storage)
    Operating System Compatible with Windows® 2000-SP4, Windows® XP, Windows® Vista, Windows® 7, Windows® 8, Windows® 10, and Linux systems; Support domestic operating system: Kirin, Unicom.
    Supported Domestic CPU Supports CPUs such as Longxin,Zhaoxin, Fetion, etc.
    Physical Dimensions Outer dimensions: 190.08* 143* 68.25mm (lengthwidthheight)
    Service and Warranty Provides 365-day/24-hour phone, email, and online technical support; one-year hardware warranty, lifetime maintenance
