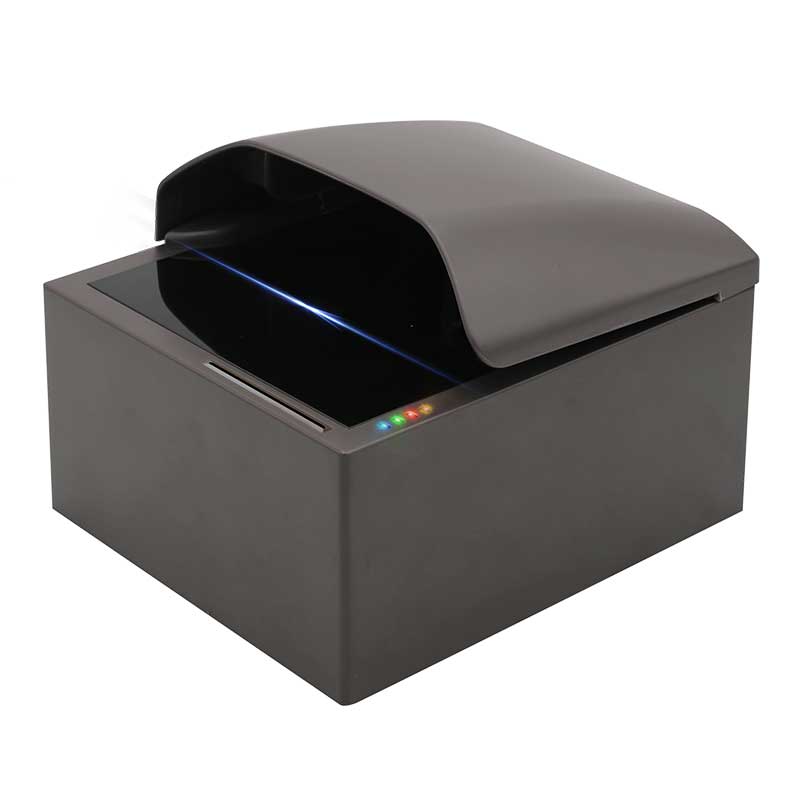

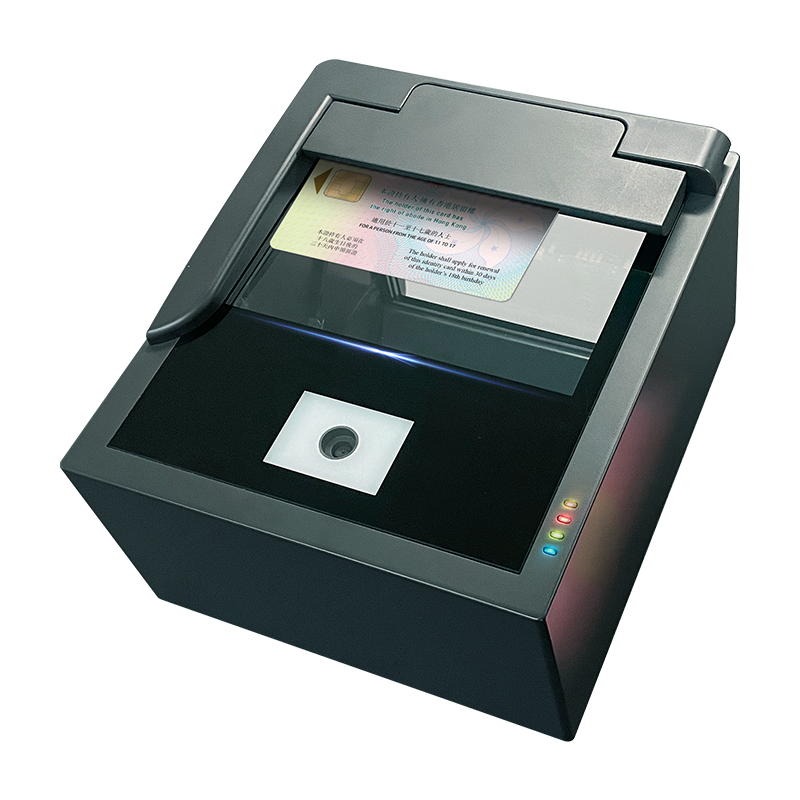

Product Passport reader KR420 Passport Scanner

Function Introduction

Identify Passports

Support reading ICAO doc 9303 standard multi passports, such as e-passports and passports from more than 200 countries

Identify Documents

Supports the reading of more than 80 kinds of documents including domestic and foreign driver's licenses, visas, Mainland travel permits, electronic Taiwan compatriots' permits, Hong Kong, Macao and Taiwan ID cards, Mainland permits for Hong Kong and Macao residents, and Mainland permits for Taiwan residents

Reading Methods

Support three reading methods: pure photo OCR recognition, pure card reading, photo + card reading

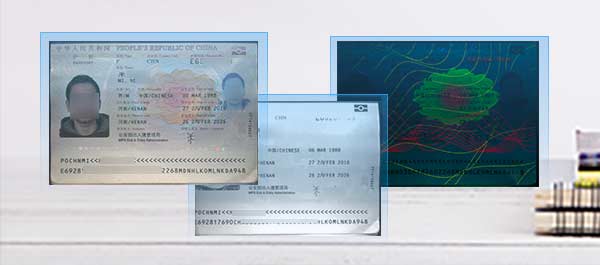

Multispectral Imaging

Passport reader supports output of visible light, infrared light, ultraviolet light image

Extract Avatars

The passport reader supports the extraction of personal avatars and chip avatars on the surface of documents

Authenticity

Supports various authenticity features such as ultraviolet light feature inspection, infrared light feature inspection, chip data inspection, OCR data and electronic chip content cross-validation

Automatic Trigger, Automatic Reading and Classification

RFID reading supports automatic identification and classification of multiple certificates, automatic reading of certificate information and entry of certificate information into the system

Recognition of Barcode and QR Code

Passport reader supports identification of barcode and QR code (including mobile QR code)

High Accuracy

The e-passport card reading time is less than 3 seconds, the second-generation card reading time is less than 1 second, the identification accuracy rate of the document is as high as 99.8%, and the communication rate supports up to 848 Kbps

Support Secondary Development

Provide software development packages for windows, Linux and Android systems for secondary development; Provide calling routines in VC, VB, c#, Java and other languages

Anti-glare Interference

Remove the influence of anti-counterfeiting film and reflections to ensure that the color of the document is not distorted

System Compatibility and Strong Applicability

It can be integrated into various management application systems and used in various scenarios such as hotels, travel agencies, visitor management systems, airports, high-speed rail, customs, inspection and quarantine, diplomacy, public security, exhibitions, etc.

Product Superiority

Support Xinchuang PC Operating System
Passport reader supports Feiteng, Loongson, Zhaoxin and other chips, as well as domestically produced systems such as Kirin system and Tongxin UOS, and the price is independently controllable
High Quality Materials and Solid Quality
Silver gray collocation, delicate and compact, solid quality, professional high borosilicate glass, material selection, friction resistance, strong stability
Independent Research and Development, Safe and Reliable
OCR certificate recognition, embedded software development, structural design, RFID card reading and debugging, image forgery detection and other completely independent research and development, safe and reliable
Anti-metal and Signal Interference
Dual antenna design to prevent signal interference, anti-metal interference, can be integrated into various metal equipment
Flexible Reading Mode Configuration
Under different reading modes, the card reading rate, the displayed text information and picture information are different, which are flexibly configured and suitable for different scenarios.
Qualified Enterprise with Strong Strength
Passed various industry certifications such as TravelSky certification, inspection report of the Ministry of Public Security, information security management system certification, and international certifications such as CE and FCC
Customizable Services
Passport readers can add new types of documents to identify different countries according to different needs of customers
HD Shooting and Clear Perspective
Passport reader 5 megapixel high-definition imaging, physical resolution of 500dpi, dual light sources to remove the impact of light spots
Various Models
Including kiosk KR530、KR420、KR160 passport readers to meet different customer needs

Application Scenarios

  • Digital Currency
  • Exit and Entry Administration
  • Customs Application
  • Tourism Industry
  • Self-Service Solution
  • High-Speed Train
Digital Currency

When the digital currency is officially launched in the future, a digital currency exchange machine will be launched, and the Sinosecu passport reader will be integrated into the digital currency exchange machine. Domestic and foreign users can present their second-generation ID cards, passports and other identity documents to the digital currency exchange machine after passing real-name authentication. Realize various exchange ways such as foreign bank card exchange for RMB, foreign currency exchange for NFC card, cash/bank card exchange to personal real-name digital currency account, etc., which is convenient for people who use cash, bank card and foreign friends to exchange and use. Passport reader automatically collects documents Information, personal identification verification, to help banks improve the efficiency of real-name authentication, facilitate domestic and foreign users to achieve free consumption, reduce waiting time in the queue, and prevent the phenomenon of forged and fake ID documents to exchange digital currencies.

Exit and Entry Administration

Apply the Sinosecu passport reader to the self-service application machines and self-service issuing machines in the entry and exit halls of the public security bureaus. When the public handles entry and exit documents and collecting documents, they put their passports and other identity documents on the machine, and the passport reader automatically recognizes the documents Information, improve the efficiency of handling documents and obtaining evidence, while reducing the error rate.

Customs Application

When international passengers enter China, all their luggage and items need to go through X-ray inspection. After the X-ray inspection of the luggage, passengers who need to open the package and re-check must register their passports and other valid document information; when leaving the country, the customs will check the items and items carried by the passengers. Cash will be restricted. In order to prevent passengers from overtaking items, real-name registration must be carried out; manual inspection and registration of document information are time-consuming, laborious and error-prone. Sinosecu passport reader is integrated at the customs entry-exit port to help the customs clearance industry complete entry-exit inspection efficiently. At the same time, it saves the cost of manpower management and improves the "intelligent" management level.

Tourism Industry

Do you still remember your last time traveliing and waiting in the lobby to check in? I do remember mine. When I walked into the lobby, I am shocked by the long queuing-up line windering back and forth. As a result, I have to wait for 30 minutes to finally get my rest. At that time, I really hope I can turn to a self-service check-in machine to quicken my check-in procedure. Sinosecu passport reader can identify a wide range of documents, including ID card, passport, Mainland Travel Permit for Hong Kong, Taiwan and Macau Residents, Home Return Permit and other 80 + documents. After integrated application in the scenic spot, tourists only need to purchase tickets under the real name system online. After arriving at the scenic area, they can directly brush their certificates to enter the scenic area through the photo reader, as to promote the development of ticket purchase under ID-based ticket booking system in the scenic spot.

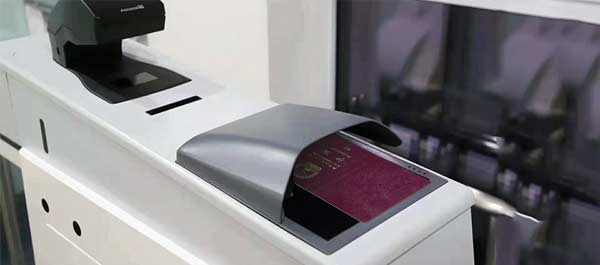

Self-Service Solution

After a passenger buys a ticket, he / she will pass the customs by virtue of the ticket, ID card, passport, home return card and other valid certificates. The passport reader will automatically read and identify the certificates held by the passenger. At the same time, the combination of human and card verification will be carried out. If the verification is passed, the gate will automatically punch in, and the passenger will enter the station to take the bus to reduce the waiting time in line.

High-Speed Train

The Sinosecu passport reader can embedded into the self-service ticket vending machine of the high-speed railway station. Domestic and foreign passengers can purchase or collect tickets efficiently at the self-service ticket vending machine of the high-speed railway station with ID cards, passports, officer cards, home return cards, second-generation Taiwan compatriots cards and other certificates.

Case

Self-Service Border Control System
Passport Reader Serve Beijing Daxing International Airport
The First "Intelligent Cruise" in China
Solutions to Improve Inbound Efficiency
Inspection And Quarantine Solutions
Passport Automatic Entry System for Travel Agencies
How does Traditional Hotels Transform into Smart Hotels
Chinese Scenic Spot Opening Solutions Under The Epidemic

Product parameters

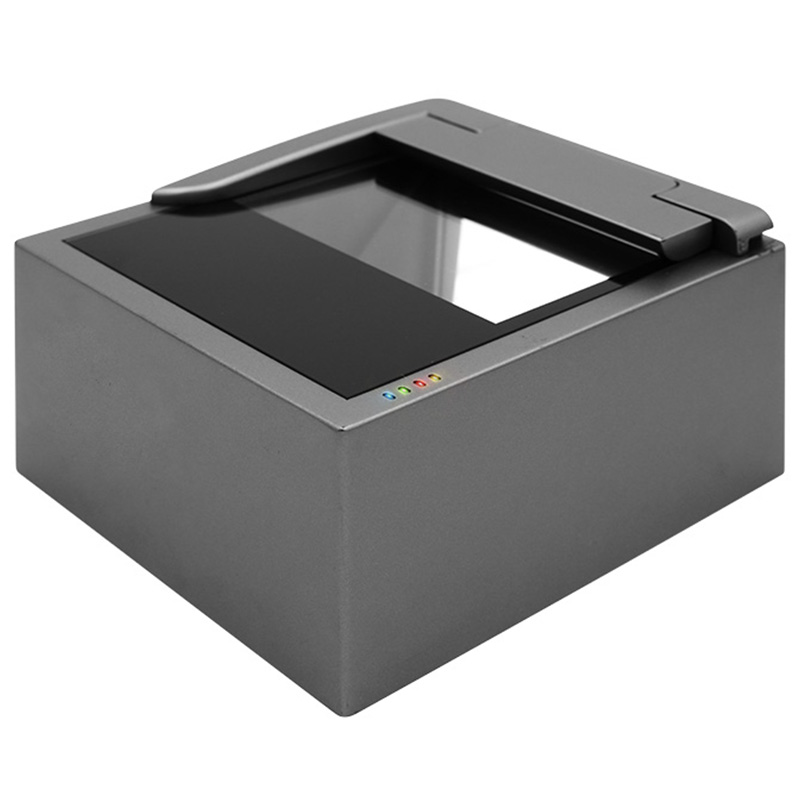

  • KR500(C) ID Card Scanner
    RFID Reading OCR Processing Visible Image IR Image UV Image Auto-Trigger
    Detalis
    Illumination sources Visible, IR(850nm), UV(365nm)
    Anti-glare Elimination of glare from holographic anti-counterfeiting film and reflection of light
    Image Acquisition Active scan area: 127mm x 88mm
    CMOS, 500 Megapixels (2592*1944)
    Imaging Color Depth: 24 bits/pixels
    Resolution: 500 DPI
    Image Format: JPEG, BMP, PNG
    Get the headshot from the chip
    Crop for Headshot Cropping of a document headshot image from a general image
    OCR Recognition Support extract data and image from ICAO 9303 Standard compliant documents and other Non-ICAO 9303 Standard compliant document, like ID card, Driver's License, Exit-entry Permit to HK/Macau, and etc by OCR
    Barcode:
    1D: Code 128, Code 39, EAN-13, and etc
    2D: PDF417, QR, DataMatrix™, and etc
    Scanning speed less than 1 second
    RFID

    Read Smart Card complied with ISO/IEC 7816
    Read and write contactless ICs according to ISO/IEC 14443-S (Type A/B)
    Support e-passport Basic Access Control(BAC)
    Support active/passive authentication

    Machine Readable Zone ICAO 9303 Standard compliant documents:
    ID-1
    ID-2
    ID-3
    Non-ICAO 9303 Standard compliant documents issued by China
    IP Rating IP50
    Data Communication Compatible USB 2.0, USB 3.0, PC/SC
    Communication Speed Up to 848kbps
    Auto-trigger Automatic detection of a document in a scanning area
    Auto-classification Automatic recognition of a ID document type
    Status Indicators Four status indicator LEDs (for Power, Ready, Error, and Warning)
    Support customize indicators
    Sound Buzzer
    Software Complete OCR SDK including DLLs, OCXs, Websocket, and Demo program
    Programming Language:
    VC, VB, C#, Java, etc. Provide OCR SDK for Linux.
    Power Input AC 100~240V 50~60Hz, 0.8A
    Output: DC 12V, 2A
    Environmental Humidity: 20% to 95% non-condensing
    Temperature:
    Operating: -10ºC to 50ºC
    Storage: -20ºC to 50ºC
    OS compatibility Windows® 2000-SP4  ,Windows® XP  ,Windows® Vista, Windows®7, Windows®8, Windows®10, and Linux®
    Hardware Dimension: 169*193*104.3mm
    Net Weight: 1.30Kg  Gross Weight: 2.11Kg
    Warranty 1 year warrany, extensible

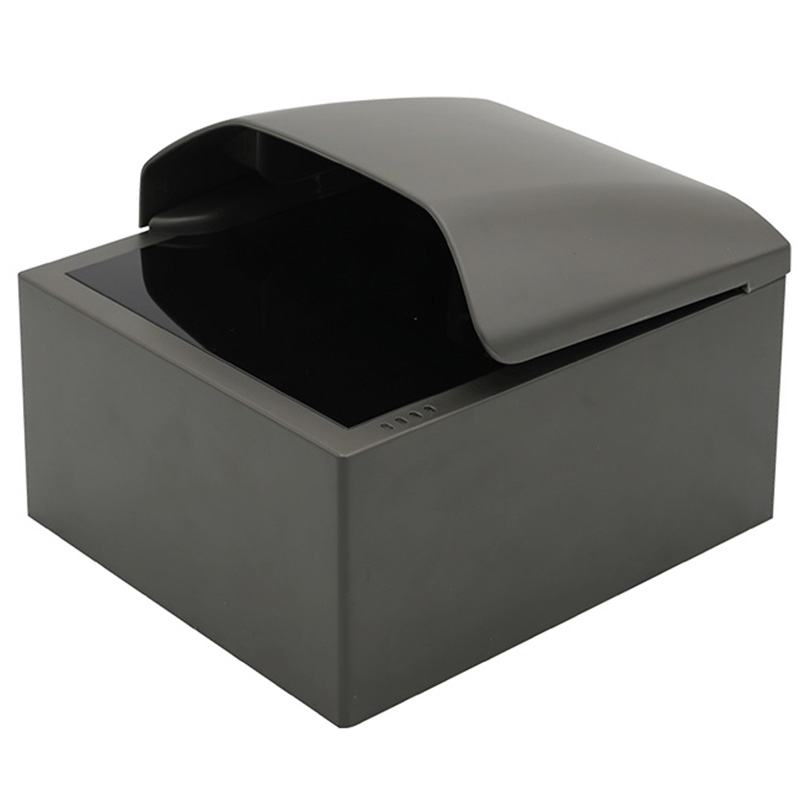

  • KR530(B) Passport Scanner
    RFID Reading OCR Processing Visible Image IR Image UV Image Auto-Trigger
    Detalis
    Illumination sources Visible, IR(850nm), UV(365nm)
    Anti-glare Elimination of glare from holographic anti-counterfeiting film and reflection of light
    Image Acquisition Active scan area: 127mm x 88mm
    CMOS, 500 Megapixels (2592*1944)
    Imaging Color Depth: 24 bits/pixels
    Resolution: 500 DPI
    Image Format: JPEG, BMP, PNG
    Get the headshot from the chip
    Crop for Headshot Cropping of a document headshot image from a general image
    OCR Recognition Support extract data and image from ICAO 9303 Standard compliant documents and other Non-ICAO 9303 Standard compliant document, like ID card, Driver's License, Exit-entry Permit to HK/Macau, and etc by OCR
    Barcode:
    1D: Code 128, Code 39, EAN-13, and etc
    2D: PDF417, QR, DataMatrix™, and etc
    Scanning speed less than 1 second
    RFID

    Read Smart Card complied with ISO/IEC 7816
    Read and write contactless ICs according to ISO/IEC 14443-S (Type A/B)
    Support e-passport Basic Access Control(BAC)
    Support active/passive authentication

    QR Code Recognition and

    Decoding

    Read barcodes on printed paper tickets and electronic tickets

    Machine Readable Zone ICAO 9303 Standard compliant documents:
    ID-1
    ID-2
    ID-3
    Non-ICAO 9303 Standard compliant documents issued by China
    IP Rating IP50
    Data Communication Compatible USB 2.0, USB 3.0, PC/SC
    Communication Speed Up to 848kbps
    Auto-trigger Automatic detection of a document in a scanning area
    Auto-classification Automatic recognition of a ID document type
    Status Indicators Four status indicator LEDs (for Power, Ready, Error, and Warning)
    Support customize indicators
    Sound Buzzer
    Software Complete OCR SDK including DLLs, OCXs, Websocket, and Demo program
    Programming Language:
    VC, VB, C#, Java, etc. Provide OCR SDK for Linux.
    Power Input AC 100~240V 50~60Hz, 0.8A
    Output: DC 12V, 2A
    Environmental Humidity: 20% to 95% non-condensing
    Temperature:
    Operating: -10ºC to 50ºC
    Storage: -20ºC to 50ºC
    OS compatibility Windows® 2000-SP4  ,Windows® XP  ,Windows® Vista, Windows®7, Windows®8, Windows®10, and Linux®
    Hardware Dimension: 169*193*104.3mm
    Net Weight: 1.30Kg  Gross Weight: 2.11Kg
    Warranty 1 year warrany, extensible

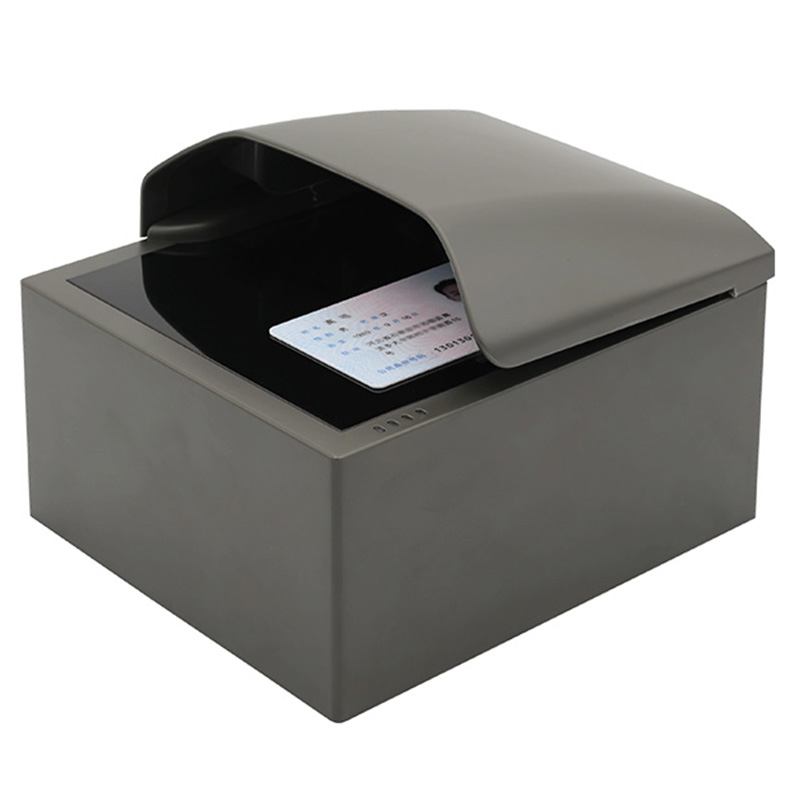

  • KR530 Passport Scanner
    RFID Reading OCR Processing Visible Image IR Image UV Image Auto-Trigger
    Detalis
    Illumination sources Visible, IR(850nm), UV(365nm)
    Anti-glare Elimination of glare from holographic anti-counterfeiting film and reflection of light
    Image Acquisition Active scan area: 127mm x 88mm
    CMOS, 500 Megapixels (2592*1944)
    Imaging Color Depth: 24 bits/pixels
    Resolution: 500 DPI
    Image Format: JPEG, BMP, PNG
    Get the headshot from the chip
    Crop for Headshot Cropping of a document headshot image from a general image
    OCR Recognition Support extract data and image from ICAO 9303 Standard compliant documents and other Non-ICAO 9303 Standard compliant document, like ID card, Driver's License, Exit-entry Permit to HK/Macau, and etc by OCR
    Barcode:
    1D: Code 128, Code 39, EAN-13, and etc
    2D: PDF417, QR, DataMatrix™, and etc
    Scanning speed less than 1 second
    RFID Read and write contactless ICs according to ISO/IEC 14443-S (Type A/B)
    Support e-passport Basic Access Control(BAC)
    Support active/passive authentication
    Machine Readable Zone ICAO 9303 Standard compliant documents:
    ID-1
    ID-2
    ID-3
    Non-ICAO 9303 Standard compliant documents issued by China
    IP Rating IP50
    Data Communication Compatible USB 2.0, USB 3.0, PC/SC
    Communication Speed Up to 848kbps
    Auto-trigger Automatic detection of a document in a scanning area
    Auto-classification Automatic recognition of a ID document type
    Status Indicators Four status indicator LEDs (for Power, Ready, Error, and Warning)
    Support customize indicators
    Sound Buzzer
    Software Complete OCR SDK including DLLs, OCXs, Websocket, and Demo program
    Programming Language:
    VC, VB, C#, Java, etc. Provide OCR SDK for Linux.
    Power Input AC 100~240V 50~60Hz, 0.8A
    Output: DC 12V, 2A
    Environmental Humidity: 20% to 95% non-condensing
    Temperature:
    Operating: -10ºC to 50ºC
    Storage: -20ºC to 50ºC
    OS compatibility Windows® 2000-SP4  ,Windows® XP  ,Windows® Vista, Windows®7, Windows®8, Windows®10, and Linux®
    Hardware Dimension: 193.2*166*104.3mm
    Net Weight: 1.30Kg  Gross Weight: 2.11Kg
    Warranty 1 year warrany, extensible
  • KR420 Passport Scanner
    RFID Reading OCR Processing Visible Image IR Image UV Image Auto-Trigger
    -
    Detalis
    Illumination sources Visible, IR(850nm)
    Anti-glare Elimination of glare from holographic anti-counterfeiting film and reflection of light
    Image Acquisition Active scan area: 127mm x 88mm
    CMOS, 500 Megapixels (2592*1944)
    Imaging Color Depth: 24 bits/pixels
    Resolution: 500 DPI
    Image Format: JPEG, BMP, PNG
    Get the headshot from the chip
    Crop for Headshot Cropping of a document headshot image from a general image
    OCR Recognition Support extract data and image from ICAO 9303 Standard compliant documents and other Non-ICAO 9303 Standard compliant document, like ID card, Driver's License, Exit-entry Permit to HK/Macau, and etc by OCR
    Barcode:
    1D: Code 128, Code 39, EAN-13, and etc
    2D: PDF417, QR, DataMatrix™, and etc
    Scanning speed less than 1 second
    RFID Read and write contactless ICs according to ISO/IEC 14443-S (Type A/B)
    Support e-passport Basic Access Control(BAC)
    Support active/passive authentication
    Machine Readable Zone ICAO 9303 Standard compliant documents:
    ID-1
    ID-2
    ID-3
    Non-ICAO 9303 Standard compliant documents issued by China
    IP Rating IP50
    Data Communication Compatible USB 2.0, USB 3.0, PC/SC
    Communication Speed Up to 848kbps
    Auto-trigger Automatic detection of a document in a scanning area
    Auto-classification Automatic recognition of a ID document type
    Status Indicators Four status indicator LEDs (for Power, Ready, Error, and Warning)
    Support customize indicators
    Sound Buzzer
    Software Complete OCR SDK including DLLs, OCXs, Websocket, and Demo program
    Programming Language:
    VC, VB, C#, Java, etc. Provide OCR SDK for Linux.
    Power Input AC 100~240V 50~60Hz, 0.8A
    Output: DC 12V, 2A
    Environmental Humidity: 20% to 95% non-condensing
    Temperature:
    Operating: -10ºC to 50ºC
    Storage: -20ºC to 50ºC
    OS compatibility Windows® 2000-SP4  ,Windows® XP  ,Windows® Vista, Windows®7, Windows®8, Windows®10, and Linux®
    Hardware Dimension: 193.2*166*104.3mm
    Net Weight: 1.30Kg  Gross Weight: 2.11Kg
    Warranty 1 year warrany, extensible
  • KR160 Passport Scanner
    RFID Reading OCR Processing Visible Image IR Image UV Image Auto-Trigger
    - -
    Detalis
    Illumination sources Visible, IR(850nm)
    Anti-glare Elimination of glare from holographic anti-counterfeiting film and reflection of light
    Image Acquisition Active scan area: 127mm x 88mm
    CMOS, 500 Megapixels (2592*1944)
    Imaging Color Depth: 24 bits/pixels
    Resolution: 500 DPI
    Image Format: JPEG, BMP, PNG
    Crop for Headshot Cropping of a document headshot image from a general image
    OCR Recognition Support extract data and image from ICAO 9303 Standard compliant documents and other Non-ICAO 9303 Standard compliant document, like ID card, Driver's License, Exit-entry Permit to HK/Macau, and etc by OCR
    Barcode:
    1D: Code 128, Code 39, EAN-13, and etc
    2D: PDF417, QR, DataMatrix™, and etc
    Scanning speed less than 1 second
    RFID Read and write contactless ICs according to ISO/IEC 14443-S (Type A/B)
    Support e-passport Basic Access Control(BAC)
    Support active/passive authentication
    Machine Readable Zone ICAO 9303 Standard compliant documents:
    ID-1
    ID-2
    ID-3
    Non-ICAO 9303 Standard compliant documents issued by China
    IP Rating IP50
    Data Communication Compatible USB 2.0, USB 3.0, PC/SC
    Communication Speed Up to 848kbps
    Auto-trigger Automatic detection of a document in a scanning area
    Auto-classification Automatic recognition of a ID document type
    Status Indicators Four status indicator LEDs (for Power, Ready, Error, and Warning)
    Support customize indicators
    Sound Buzzer
    Software Complete OCR SDK including DLLs, OCXs, Websocket, and Demo program
    Programming Language:
    VC, VB, C#, Java, etc. Provide OCR SDK for Linux.
    Power Input AC 100~240V 50~60Hz, 0.8A
    Output: DC 12V, 2A
    Environmental Humidity: 20% to 95% non-condensing
    Temperature:
    Operating: -10ºC to 50ºC
    Storage: -20ºC to 50ºC
    OS compatibility Windows® 2000-SP4  ,Windows® XP  ,Windows® Vista, Windows®7, Windows®8, Windows®10, and Linux®
    Hardware Dimension: 193.2*166*104.3mm
    Net Weight: 1.30Kg  Gross Weight: 2.11Kg
    Warranty 1 year warrany, extensible
