Function Introduction
-

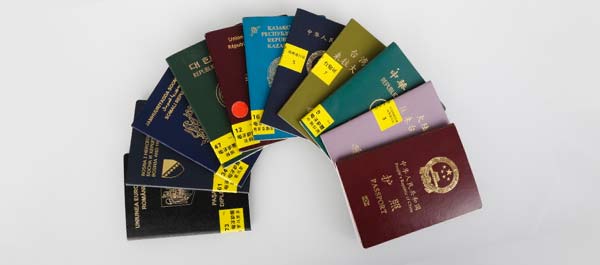

Identify Passports
Support reading ICAO doc 9303 standard multi passports, such as e-passports and passports from more than 200 countries
-

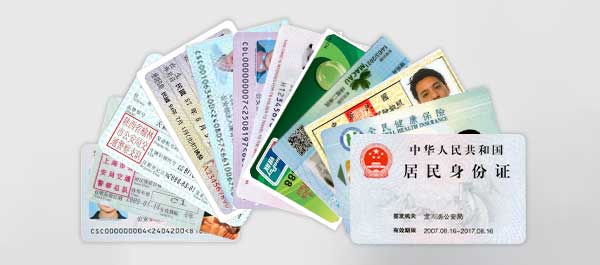

Identify Documents
Supports the reading of more than 80 kinds of documents including domestic and foreign driver's licenses, visas, Mainland travel permits, electronic Taiwan compatriots' permits, Hong Kong, Macao and Taiwan ID cards, Mainland permits for Hong Kong and Macao residents, and Mainland permits for Taiwan residents
-
Reading Methods
Support three reading methods: pure photo OCR recognition, pure card reading, photo + card reading
-

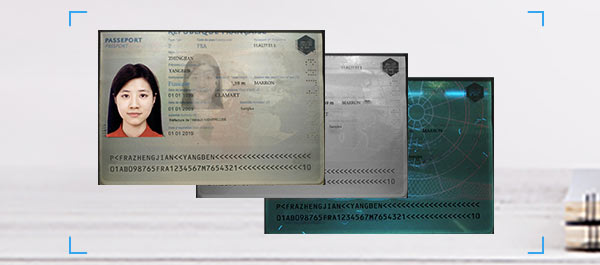

Multispectral Imaging
Passport reader supports output of visible light, infrared light, ultraviolet light image
-
Extract Avatars
The passport reader supports the extraction of personal avatars and chip avatars on the surface of documents
-
Authenticity
Supports various authenticity features such as ultraviolet light feature inspection, infrared light feature inspection, chip data inspection, OCR data and electronic chip content cross-validation
-
Automatic Trigger, Automatic Reading and Classification
RFID reading supports automatic identification and classification of multiple certificates, automatic reading of certificate information and entry of certificate information into the system
-
Recognition of Barcode and QR Code
Passport reader supports identification of barcode and QR code (including mobile QR code)
-
Certificate Reading Within Few Seconds, High Accuracy
The e-passport card reading time is less than 3 seconds, the second-generation card reading time is less than 1 second, the identification accuracy rate of the document is as high as 99.8%, and the communication rate supports up to 848 Kbps
-
Support Secondary Development
Provide software development packages for windows, Linux and Android systems for secondary development; Provide calling routines in VC, VB, c#, Java and other languages
-

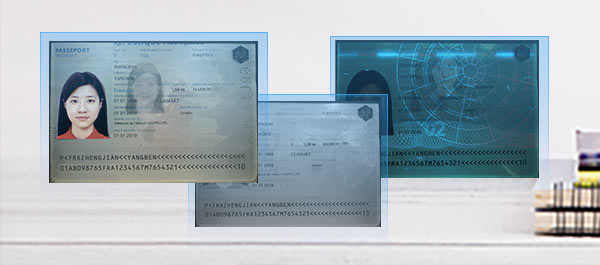

Anti-glare Interference
Remove the influence of anti-counterfeiting film and reflections to ensure that the color of the document is not distorted
-

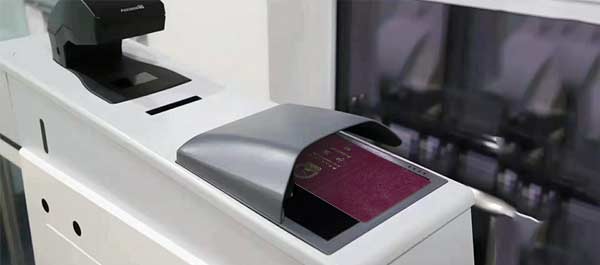

System Compatibility and Strong Applicability
It can be embedded in various self-service devices such as security gates, self-service ticket machines, VTM, digital currency exchange machines, etc., used in hotels, travel agencies, visitor management systems, airports, high-speed rail, customs, inspection and quarantine, diplomacy, public security, exhibitions, etc. Multiple scenarios
Product Superiority
Support Xinchuang PC Operating System
- Passport reader supports Feiteng, Loongson, Zhaoxin and other chips, as well as domestically produced systems such as Kirin system and Tongxin UOS, and the price is independently controllable
Snap Connection, High Quality Material Selection
- Silver gray collocation, delicate and compact, solid quality, professional high borosilicate glass, material selection, friction resistance, strong stability
Independent Research and Development, Safe and Reliable
- OCR certificate recognition, embedded software development, structural design, RFID card reading and debugging, image forgery detection and other completely independent research and development, safe and reliable
Anti-metal and Signal Interference
- Dual antenna design to prevent signal interference, anti-metal interference, can be integrated into various metal equipment
Flexible Reading Mode Configuration
- Under different reading modes, the card reading rate, the displayed text information and picture information are different, which are flexibly configured and suitable for different scenarios.
Qualified Enterprise with Strong Strength
- Passed various industry certifications such as TravelSky certification, inspection report of the Ministry of Public Security, information security management system certification, and international certifications such as CE and FCC
Customizable Services
- Passport readers can add new types of documents to identify different countries according to different needs of customers
HD Shooting and Clear Perspective
- Passport reader 5 megapixel high-definition imaging, physical resolution of 500dpi, dual light sources to remove the impact of light spots
Various Models
- Including kiosk KR530、KR420、KR160 passport readers to meet different customer needs
Application Scenarios
- Digital Currency
- Exit and Entry Administration
- Customs Application
- Tourism Industry
- Self-Service Solution
- High-Speed Train
-
Digital Currency
When the digital currency is officially launched in the future, a digital currency exchange machine will be launched, and the Sinosecu passport reader will be integrated into the digital currency exchange machine. Domestic and foreign users can present their second-generation ID cards, passports and other identity documents to the digital currency exchange machine after passing real-name authentication. Realize various exchange ways such as foreign bank card exchange for RMB, foreign currency exchange for NFC card, cash/bank card exchange to personal real-name digital currency account, etc., which is convenient for people who use cash, bank card and foreign friends to exchange and use. Passport reader automatically collects documents Information, personal identification verification, to help banks improve the efficiency of real-name authentication, facilitate domestic and foreign users to achieve free consumption, reduce waiting time in the queue, and prevent the phenomenon of forged and fake ID documents to exchange digital currencies.
-
Exit and Entry Administration
Apply the Sinosecu passport reader to the self-service application machines and self-service issuing machines in the entry and exit halls of the public security bureaus. When the public handles entry and exit documents and collecting documents, they put their passports and other identity documents on the machine, and the passport reader automatically recognizes the documents Information, improve the efficiency of handling documents and obtaining evidence, while reducing the error rate.
-
Customs Application
When international passengers enter China, all their luggage and items need to go through X-ray inspection. After the X-ray inspection of the luggage, passengers who need to open the package and re-check must register their passports and other valid document information; when leaving the country, the customs will check the items and items carried by the passengers. Cash will be restricted. In order to prevent passengers from overtaking items, real-name registration must be carried out; manual inspection and registration of document information are time-consuming, laborious and error-prone. Sinosecu passport reader is integrated at the customs entry-exit port to help the customs clearance industry complete entry-exit inspection efficiently. At the same time, it saves the cost of manpower management and improves the "intelligent" management level.
-
Tourism Industry
Do you still remember your last time traveliing and waiting in the lobby to check in? I do remember mine. When I walked into the lobby, I am shocked by the long queuing-up line windering back and forth. As a result, I have to wait for 30 minutes to finally get my rest. At that time, I really hope I can turn to a self-service check-in machine to quicken my check-in procedure. Sinosecu passport reader can identify a wide range of documents, including ID card, passport, Mainland Travel Permit for Hong Kong, Taiwan and Macau Residents, Home Return Permit and other 80 + documents. After integrated application in the scenic spot, tourists only need to purchase tickets under the real name system online. After arriving at the scenic area, they can directly brush their certificates to enter the scenic area through the photo reader, as to promote the development of ticket purchase under ID-based ticket booking system in the scenic spot.
-
Self-Service Solution
After a passenger buys a ticket, he / she will pass the customs by virtue of the ticket, ID card, passport, home return card and other valid certificates. The passport reader will automatically read and identify the certificates held by the passenger. At the same time, the combination of human and card verification will be carried out. If the verification is passed, the gate will automatically punch in, and the passenger will enter the station to take the bus to reduce the waiting time in line.
-
High-Speed Train
The Sinosecu passport reader can embedded into the self-service ticket vending machine of the high-speed railway station. Domestic and foreign passengers can purchase or collect tickets efficiently at the self-service ticket vending machine of the high-speed railway station with ID cards, passports, officer cards, home return cards, second-generation Taiwan compatriots cards and other certificates.
Case
-
- Self-Service Border Control System
-
- Passport Reader Serve Beijing Daxing International Airport
-
- The First "Intelligent Cruise" in China
-
- Solutions to Improve Inbound Efficiency
-
- Inspection And Quarantine Solutions
-
- Passport Automatic Entry System for Travel Agencies
-
- How does Traditional Hotels Transform into Smart Hotels
-
- Chinese Scenic Spot Opening Solutions Under The Epidemic
Product parameters
-
KR160 Passport Scanner
DetalisRFID Reading OCR Processing Visible Image IR Image UV Image Auto-Trigger - √ √ √ - √ Illumination sources Visible, IR(850nm) Anti-glare Elimination of glare from holographic anti-counterfeiting film and reflection of light Image Acquisition Active scan area: 127mm x 88mm
CMOS, 500 Megapixels (2592*1944)Imaging Color Depth: 24 bits/pixels
Resolution: 500 DPI
Image Format: JPEG, BMP, PNGCrop for Headshot Cropping of a document headshot image from a general image OCR Recognition Support extract data and image from ICAO 9303 Standard compliant documents and other Non-ICAO 9303 Standard compliant document, like ID card, Driver's License, Exit-entry Permit to HK/Macau, and etc by OCR
Barcode:
1D: Code 128, Code 39, EAN-13, and etc
2D: PDF417, QR, DataMatrix™, and etc
Scanning speed less than 1 secondRFID Read and write contactless ICs according to ISO/IEC 14443-S (Type A/B)
Support e-passport Basic Access Control(BAC)
Support active/passive authenticationMachine Readable Zone ICAO 9303 Standard compliant documents:
ID-1
ID-2
ID-3
Non-ICAO 9303 Standard compliant documents issued by ChinaIP Rating IP50 Data Communication Compatible USB 2.0, USB 3.0, PC/SC Communication Speed Up to 848kbps Auto-trigger Automatic detection of a document in a scanning area Auto-classification Automatic recognition of a ID document type Status Indicators Four status indicator LEDs (for Power, Ready, Error, and Warning)
Support customize indicatorsSound Buzzer Software Complete OCR SDK including DLLs, OCXs, Websocket, and Demo program
Programming Language:
VC, VB, C#, Java, etc. Provide OCR SDK for Linux.Power Input AC 100~240V 50~60Hz, 0.8A
Output: DC 12V, 2AEnvironmental Humidity: 20% to 95% non-condensing
Temperature:
Operating: -10ºC to 50ºC
Storage: -20ºC to 50ºCOS compatibility Windows® 2000-SP4 ，Windows® XP ，Windows® Vista, Windows®7, Windows®8, Windows®10, and Linux® Hardware Dimension: 193.2*166*104.3mm
Net Weight: 1.30Kg Gross Weight: 2.11KgWarranty 1 year warrany, extensible -
KR420 Passport Scanner
DetalisRFID Reading OCR Processing Visible Image IR Image UV Image Auto-Trigger √ √ √ √ - √ Illumination sources Visible, IR(850nm) Anti-glare Elimination of glare from holographic anti-counterfeiting film and reflection of light Image Acquisition Active scan area: 127mm x 88mm
CMOS, 500 Megapixels (2592*1944)Imaging Color Depth: 24 bits/pixels
Resolution: 500 DPI
Image Format: JPEG, BMP, PNG
Get the headshot from the chipCrop for Headshot Cropping of a document headshot image from a general image OCR Recognition Support extract data and image from ICAO 9303 Standard compliant documents and other Non-ICAO 9303 Standard compliant document, like ID card, Driver's License, Exit-entry Permit to HK/Macau, and etc by OCR
Barcode:
1D: Code 128, Code 39, EAN-13, and etc
2D: PDF417, QR, DataMatrix™, and etc
Scanning speed less than 1 secondRFID Read and write contactless ICs according to ISO/IEC 14443-S (Type A/B)
Support e-passport Basic Access Control(BAC)
Support active/passive authenticationMachine Readable Zone ICAO 9303 Standard compliant documents:
ID-1
ID-2
ID-3
Non-ICAO 9303 Standard compliant documents issued by ChinaIP Rating IP50 Data Communication Compatible USB 2.0, USB 3.0, PC/SC Communication Speed Up to 848kbps Auto-trigger Automatic detection of a document in a scanning area Auto-classification Automatic recognition of a ID document type Status Indicators Four status indicator LEDs (for Power, Ready, Error, and Warning)
Support customize indicatorsSound Buzzer Software Complete OCR SDK including DLLs, OCXs, Websocket, and Demo program
Programming Language:
VC, VB, C#, Java, etc. Provide OCR SDK for Linux.Power Input AC 100~240V 50~60Hz, 0.8A
Output: DC 12V, 2AEnvironmental Humidity: 20% to 95% non-condensing
Temperature:
Operating: -10ºC to 50ºC
Storage: -20ºC to 50ºCOS compatibility Windows® 2000-SP4 ，Windows® XP ，Windows® Vista, Windows®7, Windows®8, Windows®10, and Linux® Hardware Dimension: 193.2*166*104.3mm
Net Weight: 1.30Kg Gross Weight: 2.11KgWarranty 1 year warrany, extensible -
KR530 Passport Scanner
DetalisRFID Reading OCR Processing Visible Image IR Image UV Image Auto-Trigger √ √ √ √ √ √ Illumination sources Visible, IR(850nm), UV(365nm) Anti-glare Elimination of glare from holographic anti-counterfeiting film and reflection of light Image Acquisition Active scan area: 127mm x 88mm
CMOS, 500 Megapixels (2592*1944)Imaging Color Depth: 24 bits/pixels
Resolution: 500 DPI
Image Format: JPEG, BMP, PNG
Get the headshot from the chipCrop for Headshot Cropping of a document headshot image from a general image OCR Recognition Support extract data and image from ICAO 9303 Standard compliant documents and other Non-ICAO 9303 Standard compliant document, like ID card, Driver's License, Exit-entry Permit to HK/Macau, and etc by OCR
Barcode:
1D: Code 128, Code 39, EAN-13, and etc
2D: PDF417, QR, DataMatrix™, and etc
Scanning speed less than 1 secondRFID Read and write contactless ICs according to ISO/IEC 14443-S (Type A/B)
Support e-passport Basic Access Control(BAC)
Support active/passive authenticationMachine Readable Zone ICAO 9303 Standard compliant documents:
ID-1
ID-2
ID-3
Non-ICAO 9303 Standard compliant documents issued by ChinaIP Rating IP50 Data Communication Compatible USB 2.0, USB 3.0, PC/SC Communication Speed Up to 848kbps Auto-trigger Automatic detection of a document in a scanning area Auto-classification Automatic recognition of a ID document type Status Indicators Four status indicator LEDs (for Power, Ready, Error, and Warning)
Support customize indicatorsSound Buzzer Software Complete OCR SDK including DLLs, OCXs, Websocket, and Demo program
Programming Language:
VC, VB, C#, Java, etc. Provide OCR SDK for Linux.Power Input AC 100~240V 50~60Hz, 0.8A
Output: DC 12V, 2AEnvironmental Humidity: 20% to 95% non-condensing
Temperature:
Operating: -10ºC to 50ºC
Storage: -20ºC to 50ºCOS compatibility Windows® 2000-SP4 ，Windows® XP ，Windows® Vista, Windows®7, Windows®8, Windows®10, and Linux® Hardware Dimension: 193.2*166*104.3mm
Net Weight: 1.30Kg Gross Weight: 2.11KgWarranty 1 year warrany, extensible -
KR530(B) Passport Scanner
DetalisRFID Reading OCR Processing Visible Image IR Image UV Image Auto-Trigger — √ √ √ √ √ Illumination sources Visible, IR(850nm), UV(365nm) Anti-glare Elimination of glare from holographic anti-counterfeiting film and reflection of light Image Acquisition Active scan area: 127mm x 88mm
CMOS, 500 Megapixels (2592*1944)Imaging Color Depth: 24 bits/pixels
Resolution: 500 DPI
Image Format: JPEG, BMP, PNG
Get the headshot from the chipCrop for Headshot Cropping of a document headshot image from a general image OCR Recognition Support extract data and image from ICAO 9303 Standard compliant documents and other Non-ICAO 9303 Standard compliant document, like ID card, Driver's License, Exit-entry Permit to HK/Macau, and etc by OCR
Barcode:
1D: Code 128, Code 39, EAN-13, and etc
2D: PDF417, QR, DataMatrix™, and etc
Scanning speed less than 1 secondRFID Read Smart Card complied with ISO/IEC 7816
Read and write contactless ICs according to ISO/IEC 14443-S (Type A/B)
Support e-passport Basic Access Control(BAC)
Support active/passive authenticationQR Code Recognition and Decoding
Read barcodes on printed paper tickets and electronic tickets
Machine Readable Zone ICAO 9303 Standard compliant documents:
ID-1
ID-2
ID-3
Non-ICAO 9303 Standard compliant documents issued by ChinaIP Rating IP50 Data Communication Compatible USB 2.0, USB 3.0, PC/SC Communication Speed Up to 848kbps Auto-trigger Automatic detection of a document in a scanning area Auto-classification Automatic recognition of a ID document type Status Indicators Four status indicator LEDs (for Power, Ready, Error, and Warning)
Support customize indicatorsSound Buzzer Software Complete OCR SDK including DLLs, OCXs, Websocket, and Demo program
Programming Language:
VC, VB, C#, Java, etc. Provide OCR SDK for Linux.Power Input AC 100~240V 50~60Hz, 0.8A
Output: DC 12V, 2AEnvironmental Humidity: 20% to 95% non-condensing
Temperature:
Operating: -10ºC to 50ºC
Storage: -20ºC to 50ºCOS compatibility Windows® 2000-SP4 ，Windows® XP ，Windows® Vista, Windows®7, Windows®8, Windows®10, and Linux® Hardware Dimension: 169*193*104.3mm
Net Weight: 1.30Kg Gross Weight: 2.11KgWarranty 1 year warrany, extensible -
KR500(C) ID Card Scanner
DetalisRFID Reading OCR Processing Visible Image IR Image UV Image Auto-Trigger √ √ √ √ √ √ Illumination sources Visible, IR(850nm), UV(365nm) Anti-glare Elimination of glare from holographic anti-counterfeiting film and reflection of light Image Acquisition Active scan area: 127mm x 88mm
CMOS, 500 Megapixels (2592*1944)Imaging Color Depth: 24 bits/pixels
Resolution: 500 DPI
Image Format: JPEG, BMP, PNG
Get the headshot from the chipCrop for Headshot Cropping of a document headshot image from a general image OCR Recognition Support extract data and image from ICAO 9303 Standard compliant documents and other Non-ICAO 9303 Standard compliant document, like ID card, Driver's License, Exit-entry Permit to HK/Macau, and etc by OCR
Barcode:
1D: Code 128, Code 39, EAN-13, and etc
2D: PDF417, QR, DataMatrix™, and etc
Scanning speed less than 1 secondRFID Read Smart Card complied with ISO/IEC 7816
Read and write contactless ICs according to ISO/IEC 14443-S (Type A/B)
Support e-passport Basic Access Control(BAC)
Support active/passive authenticationMachine Readable Zone ICAO 9303 Standard compliant documents:
ID-1
ID-2
ID-3
Non-ICAO 9303 Standard compliant documents issued by ChinaIP Rating IP50 Data Communication Compatible USB 2.0, USB 3.0, PC/SC Communication Speed Up to 848kbps Auto-trigger Automatic detection of a document in a scanning area Auto-classification Automatic recognition of a ID document type Status Indicators Four status indicator LEDs (for Power, Ready, Error, and Warning)
Support customize indicatorsSound Buzzer Software Complete OCR SDK including DLLs, OCXs, Websocket, and Demo program
Programming Language:
VC, VB, C#, Java, etc. Provide OCR SDK for Linux.Power Input AC 100~240V 50~60Hz, 0.8A
Output: DC 12V, 2AEnvironmental Humidity: 20% to 95% non-condensing
Temperature:
Operating: -10ºC to 50ºC
Storage: -20ºC to 50ºCOS compatibility Windows® 2000-SP4 ，Windows® XP ，Windows® Vista, Windows®7, Windows®8, Windows®10, and Linux® Hardware Dimension: 169*193*104.3mm
Net Weight: 1.30Kg Gross Weight: 2.11KgWarranty 1 year warrany, extensible -
Ultra-Thin Embedded Passport Reader
DetalisRFID Reading OCR Processing Auto-Trigger Barcode Recognition Light type Supported Resolutions √ √ √ √ Visible light, infrared light, ultraviolet light 2048×1536、2592×1944 Parameter Name Detailed Description Light Source Multi-band light source: includes visible light, infrared 850nm, UV 365nm; UV exposure intensity can be adjusted Anti-glare Function Ensures accurate document color without distortion, and removes the influence of anti-counterfeiting film and glare Image Capture Capture area 127*88 mm, sensor CMOS 5MP（2592* 1944） resolution 500 DPI, 24-bit clear color photos of the full page of passport documents Image Saving Images captured under visible (white), infrared, and ultraviolet light can be saved in BMP, PNG, or JPEG formats without reflective light spots; electronic headshots can also be saved from chip-enabled IDs. Document Image Rotation Supports automatic document rotation function;
Can make any direction into the documents, image acquisition after the rotation of the corrected are the positive direction of the displayHuman Face Detection Cropped image with face and head areas intact, non-photographic areas are small in the image, and the photo is free of photographic occlusion Multi-band Image Recognition Support ICAO9303 standard passport, visa and other travel documents image capture and information recognition;
Support ICAO9303 standard e-passport card reading;
Support ISO 14443 Type A/B type card reading.E-passport Chip Reading Support basic access control (BAC, PACE) for e-passport
Support passive authentication (PA) of e-passport to verify the authenticity of document information.
Support e-Passport Active Authentication (AA) to verify the authenticity of document chips.Second Generation ID Chip Reading Supports the reading and authentication of second-generation ID cards with BAC authentication Machine-Readable Zone (MRZ) Reads all ICAO-compliant machine-readable travel documents, as well as non-ICAO-compliant documents issued in China.And parses machine readable code (MRZ) information. Barcode Recognition Supports recognition of 1D barcodes such as Code 128, Code 39, EAN-13; supports 2D barcodes such as PDF417, QR, DataMatrix Camera Support recognition of paper boarding passes, electronic boarding passes, electronic ID card recognition, electronic driver's license recognition, scenic area electronic tickets and other electronic QR codes on various cell phones; photo recognition speed of less than 1 second; support for ultraviolet light brightness adjustment Expansion Features Support to enable the document to take out, callback mode, refused to recognize the function;
Support to enable security feature detection, RFID card reading settings and other expanded settings;
Supports the removal of complex background settings, resolution settings, enable barcode recognition.Operation Mode Card documents can be read at any position in the reading window triggered reading; machine readable code page skewed or upside down does not affect the reading results Protection Level IP50 Data Communication Supports PC/SC protocol (including driverless mode), provides USB2.0 and USB3.0 ports; supports USB extension development and can be connected to handheld devices. Communication Rate Maximum rate of 848 Kbps Automatic triggering Support for automatic triggering of ID card reading by sensing the ID card Automatic classification The system automatically categorizes documents. Indicator Lights Includes power indicator, ready indicator, error indicator and warning indicator; support indicator working state customization Buzzer Built-in Buzzer Software Development Provide windows system software development kit for secondary development call;
Provide in the form of Dll, OCX, WebSocket, and call routines in VC, VB, C#, Java and other languages;
Provide 32-bit and 64-bit SDK development packages for Linux and Android.Power Supply Use external standard power adapter, Power adapter specification;
Input AC 100~240V 50-60Hz 0.8A; Output DC 12V 2AOperating Environment Humidity: 20% to 95% (non-condensing); temperature: -10°C to 50°C (operation); -20°C to 50°C (storage) Operating System Compatible with Windows® 2000-SP4, Windows® XP, Windows® Vista, Windows® 7, Windows® 8, Windows® 10, and Linux systems; Support domestic operating system: Kirin, Unicom. Supported Domestic CPU Supports CPUs such as Longxin,Zhaoxin, Fetion, etc. Physical Dimensions Outer dimensions: 190.08* 143* 68.25mm (lengthwidthheight) Service and Warranty Provides 365-day/24-hour phone, email, and online technical support; one-year hardware warranty, lifetime maintenance
